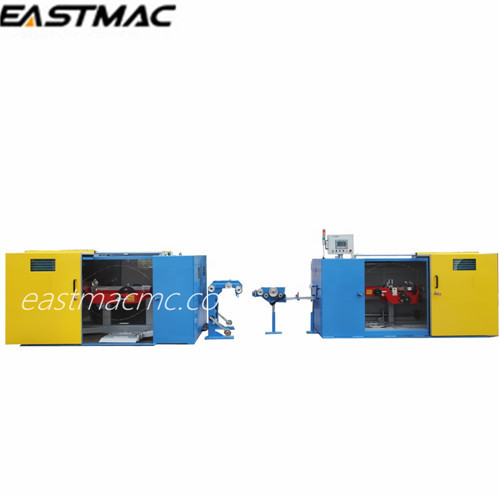

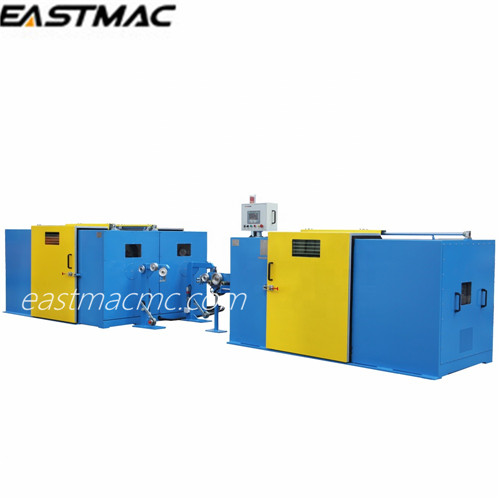

Application: Matched with cabling machine, to produce high frequency cable and reach back-twist effect.
Structure:
1.500mm and 630mm double bobbin back-twist with active pay-off device(Frequency conversion motor drive back-twist device)
2.Double twist (Mechatronics, inverter speed-regulation, PLC control, and color panel of man-machine )
3.Fixed length equalizing device of inlet wire
4.Spark tester(Customer option)
Main technical data:
|
Model |
500mm |
630mm |
|
Conductor diameter(mm) |
0.4-0.65 |
0.4-0.65 |
|
Max insulation diameter(mm) |
1.40 |
1.40 |
|
Max twist diameter(mm) |
2.80 |
2.80 |
|
Pitch scope(mm) |
10-30 |
10-30 |
|
Back-twist degree |
0-50% Arbitrary adjustable |
0-50% Arbitrary adjustable |
|
Max speed of double-twist(RPM) |
200 -2000 |
200 -2000 |
|
Twist speed(TPM) |
400-4000 |
400-4000 |
|
Max line speed m/min |
150 |
150 |
|
Twist direction |
Left or right |
Left or right |
|
Max speed of back-twist bow |
100 -1500rpm (stepless adjust) |
100 -1500rpm (stepless adjust) |
|
Tension regulating range(N) |
5-25 |
5-25 |
|
Double-twist tension |
Japan mitsubishi powder clutch |
Japan mitsubishi magnetic powder clutch |
|
Double-twist motor power |
7.5KW Three-phase AC motor,frequency conversion speed |
7.5KW Three-phase AC motor,frequency conversion speed |
|
Back-twist motor power |
7.5KW Three-phase AC motor,frequency conversion speed |
7.5KW Three-phase AC motor,frequency conversion speed |
|
Double-twist bobbin(mm) |
500x250x250 |
630x250x400 |
|
Back-twist bobbin(mm) |
500x250x250 |
500x250x250 |
|
Double-twist dimension(mm) |
2500x2200x1400 |
2500x2200x1400 |
|
Back-twist dimension(mm) |
2780x1180x1400 |
2780x1180x1400 |
|
Installation dimension(mm) |
7200x2200x1400 |
7200x2200x1400 |
|
Total weight (kg) |
About 10500 |
About 10500 |
