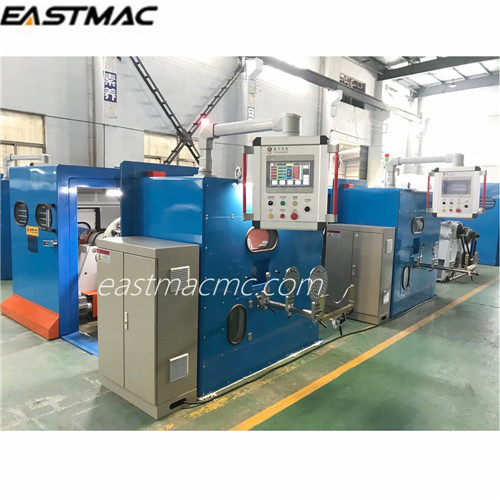

High Production Automatic Wire Twisting and Buncher Machine For Data Cable CAT7

Item No.: 00220
Double Twisting Machine is mainly used for Pairing of insulated wires for communication cables such as LAN cable (CAT5/CAT5E/CAT6/CAT7), date cable, signal cable, instrumentation cable etc.
  • Brand NameEASTMAC
  • Place of OriginCHINA
  • PortSHANGHAI
  • Supply Ability100 SETS PER MONTH
  • Payment TermsT/T, L/C
  • More Less
    Description
    Description

    Application:
    Double Twisting Machine is mainly used for Pairing of insulated wires for communication cables such as LAN cable (CAT5/CAT5E/CAT6/CAT7), date cable, signal cable, instrumentation cable etc.
    High Production Automatic Wire Twisting and Buncher Machine For Data Cable CAT7



    Products produced by Double Twisting Machine:

    High Production Automatic Wire Twisting and Buncher Machine For Data Cable CAT7



    Main technical data:

    Pay-off bobbin size

    630(OD)*475mm

    Take-up bobbin size

    630(OD)*475mm

    Dia. Of individual bare wire

    0.32(28AWG) to 1.2mm(17AWG)

    Dia. Over insulation

    Max.2mm

    Max. dia. Of finished products

    5mm

    Lay range

    10-200mm

    Twisting direction

    both S and Z



    Main Parts:

    No.

    Components

    Quantity

    Remark

    1.

    400-630 dual driven pay off with tension dancer

    2sets



    2.

    Eccentricity compensator

    1 set



    3.

    630 bunching machine

    1 set

    Electronic lay change

           4

    PLC Electrical control cabinet

    1 suit
