Application:

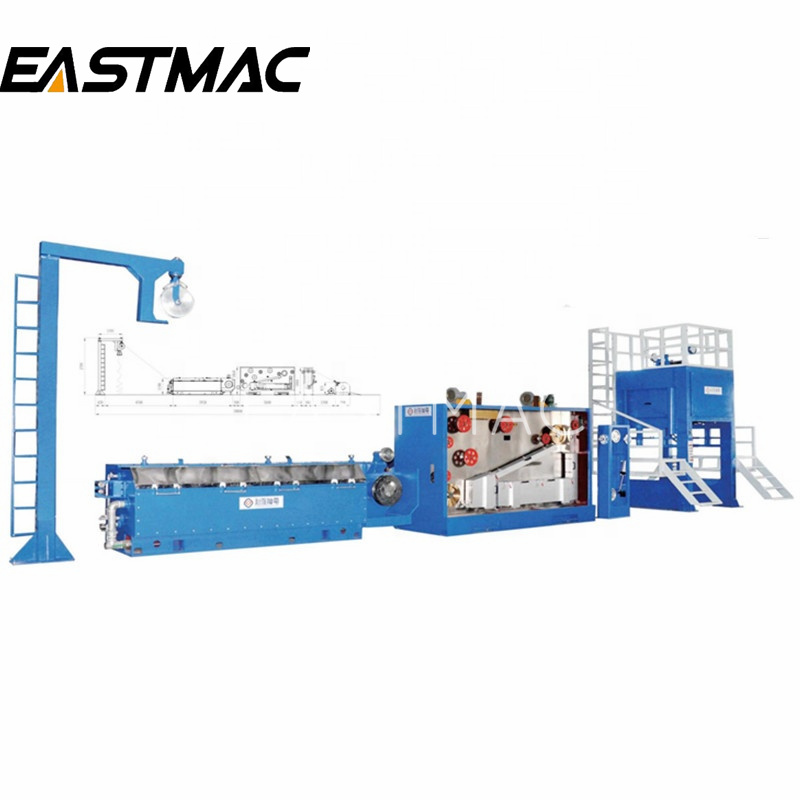

450-9/13DT Rod Breakdown Machine with Continuous Annealer is drawing bare copper wire and copper-clad aluminum wire.
Main Technical Data:
|
Machine Type |
450/9DT |
450/13DT |
|
Inlet dia.(mm) |
Φ8 |
Φ8 |
|
Outlet dia(mm) |
Φ2.5-Φ3.5 |
Φ1.6-Φ3.0 |
|
Max .speed(mpm) |
800 |
800 |
|
Max.number of dies |
9 |
13 |
|
Slip ratio of M/C |
20% |
20% |
|
Fix speed capstan slip ratio |
17% |
17% |
|
Capstan |
Tungsten carbide coated |
Tungsten carbide coated |
|
Max. capstan dia.(mm) |
Φ450 |
Φ450 |
|
Fix speed capstan dia .(mm) |
Φ450 |
Φ450 |
|
Frame |
Welded |
Welded |
|
Main motor power |
160KW |
160KW |
|
Spooler power |
15KW |
15KW |
|
Dynamic control |
Control with DC speed regulator +double frequency converters |
|
|
Tension control |
Pneumatic balance by swing arm |
|
|
Pay-off method |
Over-head |
|
|
Traversing method |
Gear motor |
|
|
Transmission method |
By gear |
|
|
Lubrication method |
Half-immersing+spray type |
|
|
Suitable spool |
Φ800 coiling basket |
|
|
Capacity of take-up(kg) |
1200-1800 |
1200-1800 |
|
Service voltage |
380V |
380V |
|
Brake |
Pneumatic brake |
