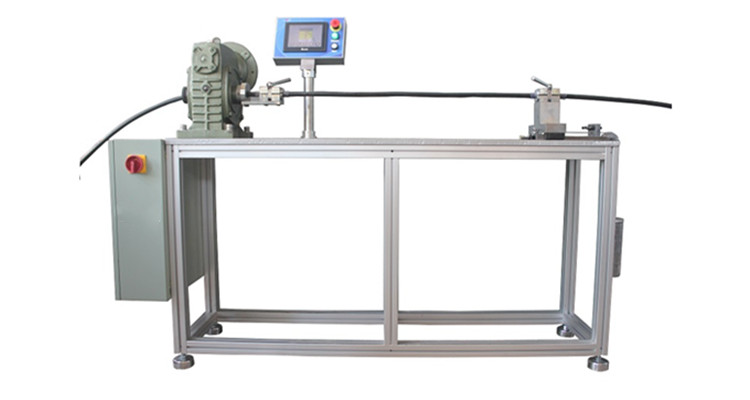

CTR-1000 Series
Cable Torsion/Twist Testing Machine.
Overview
UNIVER CTR-1000 Series Cable Torsion/Twist Testing Machine is intended to establish the ability of a cable to withstand mechanical twisting,
this machine is specially designed in accordance with IEC-60794-1-21-E7, IEEE 1222, IEEE 1138
Main technical parameters:
|
Torsion angle |
Degree |
±90°, ±180°, ±360° |
|
Max. distance between clamps |
mm |
2000 or upon request |
|
Clamps for cable |
mm |
5-30mm, others upon request |
|
Max. twisting cycles |
Cycles |
1-9999 |
|
Frequency range |
Cycles/min |
5-30 |
|
Mass of weights for applying tension |
|
1-10kg |
|
|
||
|
Dimensions (W*D*H) |
mm |
2500*650*1420 |
|
Weight |
kg |
200 |
|
Power |
|
1P+E, 220Vac, 50/60Hz, 1kW |
|
Painting color |
RAL |
9006 |
