Application:

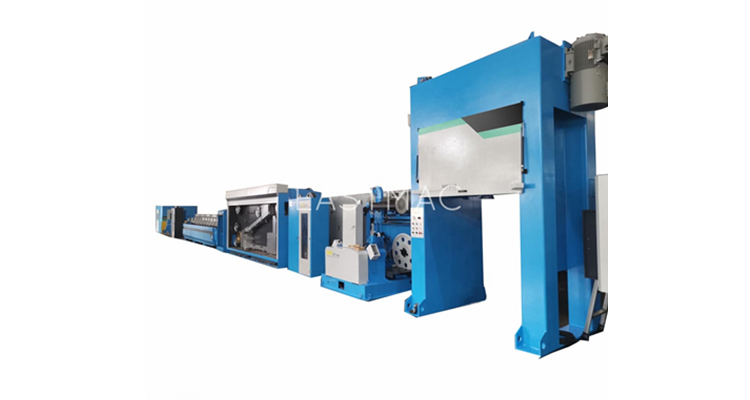

Copper Road Breakdow machine is used to produce the single copper wire sized φ1.2-4.2mm from copper rod of φ8mm. Thedrawing
capstan is arranged in straight line and in a continuous order. The mechanical speed gets well along with the electric speed so as to
change dies quickly as well as to unload the bobbins automatically without stop. It is highly praised for easy operation, high efficiency
and excellent wire quality.
Products produced by 450-13D copper rod breakdown machine:
Main technical data:
|
Inlet wire dia. (max.) |
8.0mm(<250 N/mm²) |
|
Final wire dia. |
1.2-4.2 mm |
|
Max. mechanical speed |
25 m/s |
|
Drawing capstan dia. |
450 mm |
|
Max. drawing pass |
13 |
|
Overall dimension |
28000×10000×5000 mm |
Main Parts:
1. Pay-off device
2. 450/13 drawing section
3. Gear oil unit
4. 450 Resistance annealer
5. Wire dancer
6. 630 dual spooler
7. 820 drop coiler
8. Wire pointer & stripper
9. Electric control system
10. UN2-30 butt welder
Option
11. Drawing emulsion system
12. Anneal coolant system
