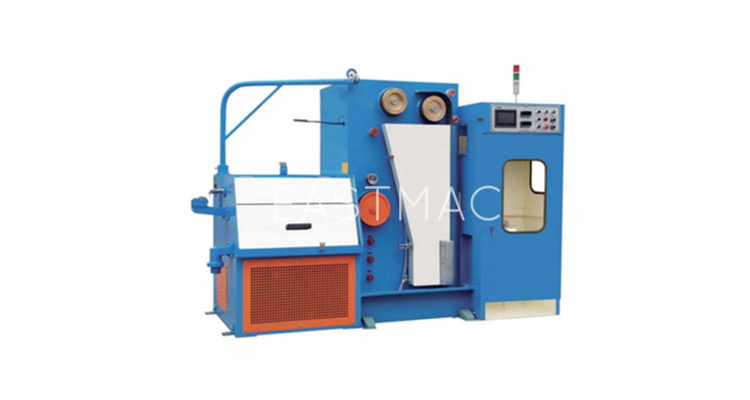

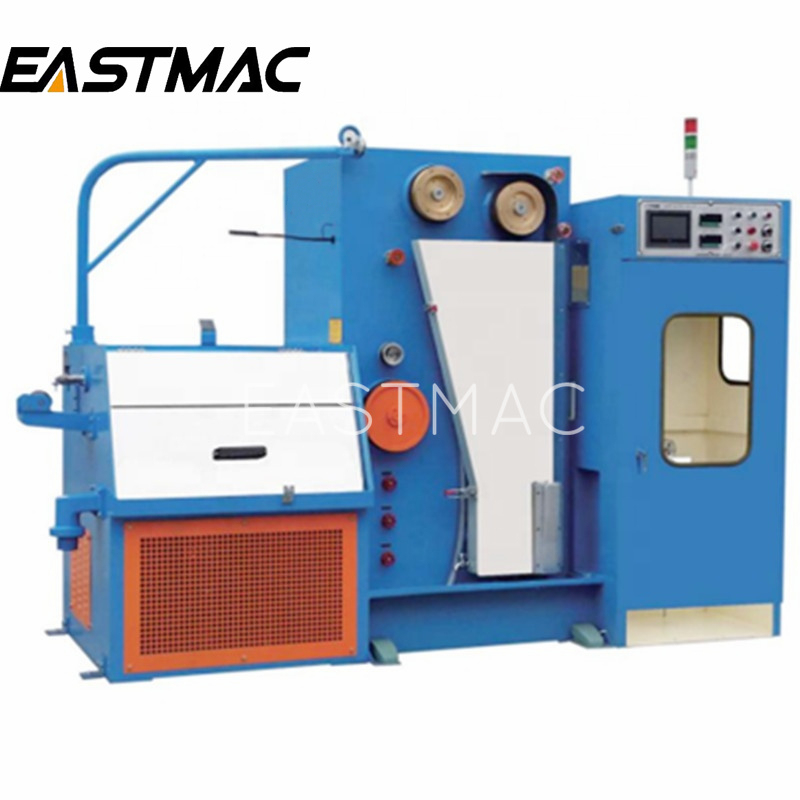

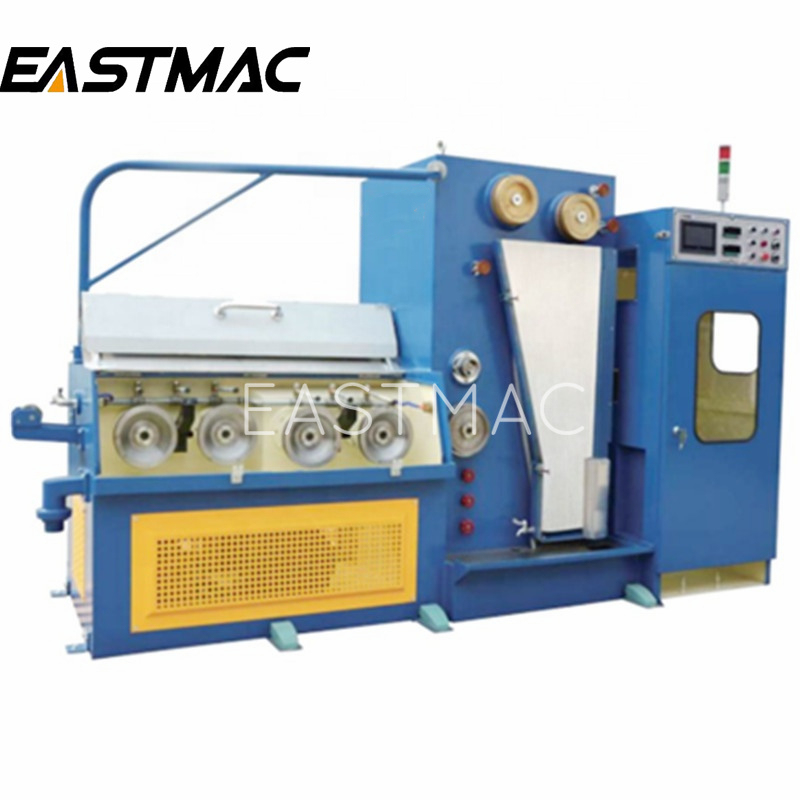

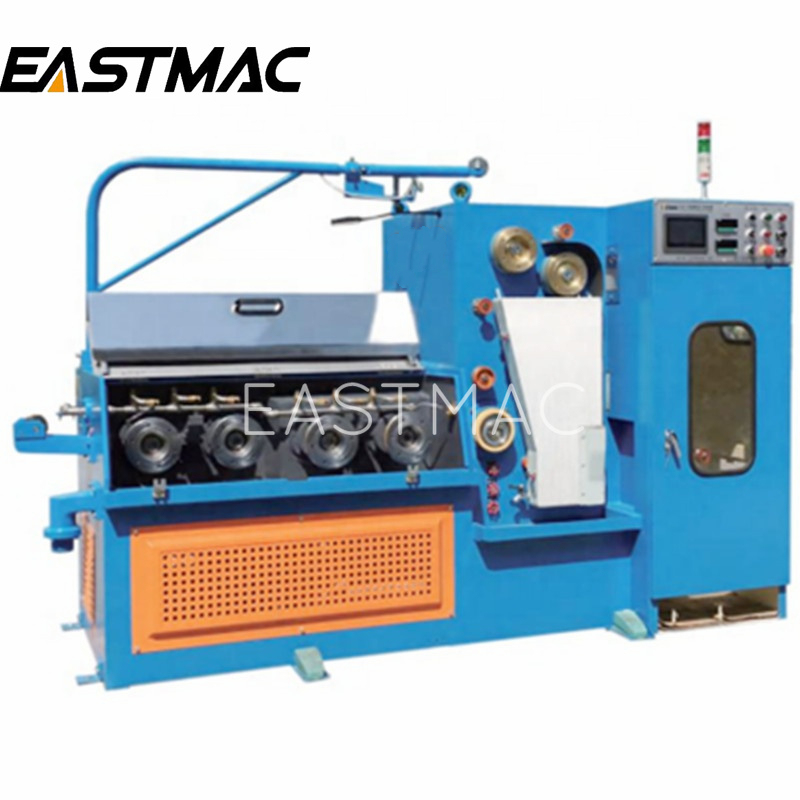

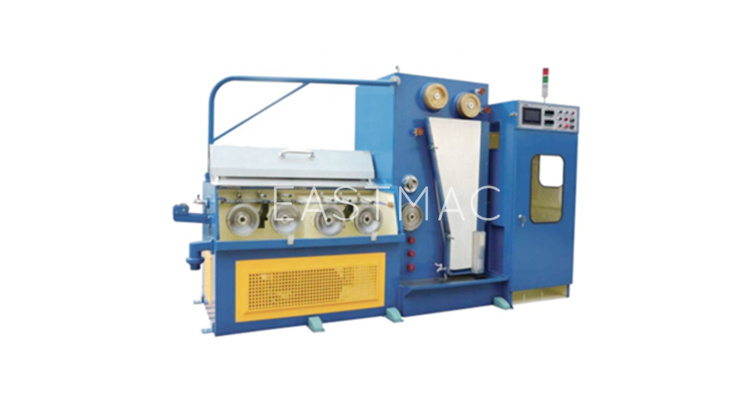

14DT Fine Wire Drawing Machine with Continuous Annealer
22DT/A Fine Wire Drawing Machine with Continuous Annealer
24DT Fine Wire Drawing Machine with Continuous Annealer
Main Technical Data:
|
Machine Type |
14DT |
24DT |
22DT/A |
|
Inlet dia.(mm) |
Φ0.8-Φ1.6 |
Φ0.5-Φ1.0 |
Φ0.6-Φ1.6 |
|
Outlet dia(mm) |
Φ0.25-Φ0.6 |
Φ0.1-Φ0.3 |
Φ0.15-Φ0.6 |
|
Max .speed(mpm) |
1200 |
2000 |
2000 |
|
Main motor power |
15KW |
15KW |
18.5KW |
|
Annealing power |
36KVA |
16KVA |
36KVA |
|
Take-up power |
3.7KW |
3.7KW |
3.7KW |
|
Annealing method |
DC three-section annealing |
||
|
Suitable spool(mm) |
Φ300 |
Φ300 |
Φ300 |
|
Correction system |
Automatically control |
||
|
Take-up capacity(kg) |
50-60 |
50-60 |
50-60 |
|
Dynamic control |
Double frequency inverters control |
||
|
Brake |
Electromagnetic brake |
||
|
Machine dimension(mm) |
2600L ×1600W ×1700H |
2300L ×1200W ×1700H |
3300L ×1600W ×1800H |
|
Machine weight(kg) |
3000 |
3000 |
3500 |
