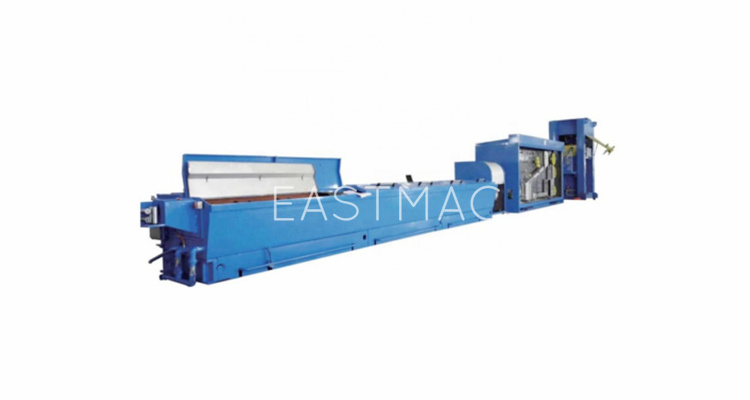

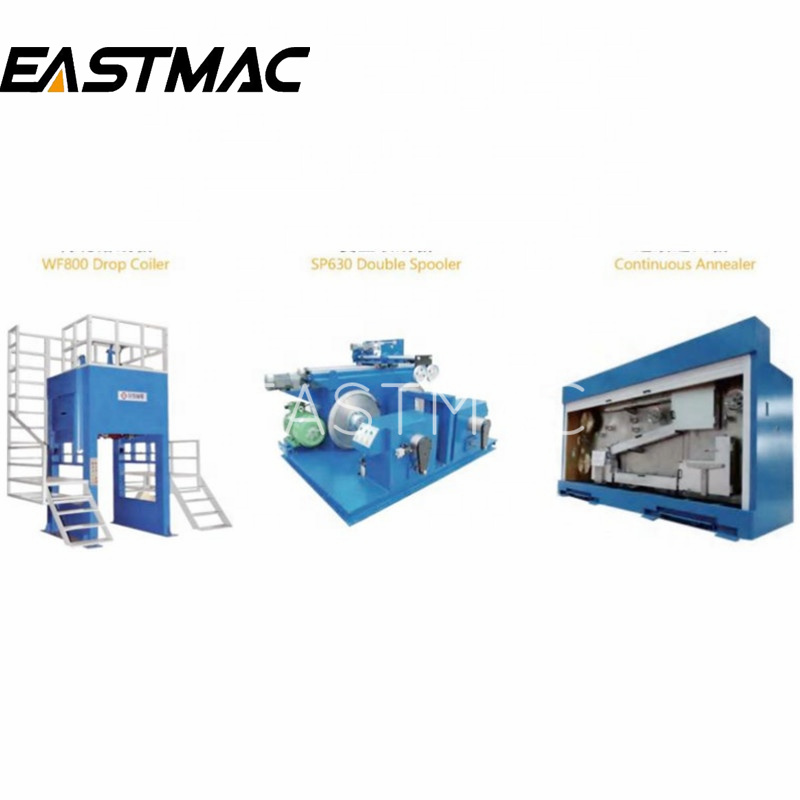

LHD450/13DT Rod Breakdown Machine with Continuous Annealer
Features:
Straight Line Rod Breakdown Machine with Continuous Annealer Features
As we set final die’s size through the PLC, the dies will be fully automatically showed on the monitor
The driving motors of drawing &final capstan will synchronously controlled to gain 2% Below drawing slip ratio.
All alarms and parameters can be controlled and displayed on a fiuorescent LCD graphics screen.
Transmission gears and bearings are enforced lubricant.
Main Technical Data:
|
Machine type |
LHD450/13DT-CU |
LHD450/13DT-AL |
|
Max.speed(mpm) |
1500 |
1500 |
|
Max .number of drawing dies |
13 |
13 |
|
Inlet diameter |
Φ8 |
Φ9.5 |
|
Outlet diameter |
Φ1.2-4.5 |
Φ1.7-4.5 |
|
Rapid die-change system |
No need to change all dies in working but the final one, which saves a lot of time |
|
|
Control system |
Control with HMI, digital control for motor is available for computer operation |
|
|
Motor control |
DC motor digital control |
|
|
Transmission method |
By precision ground helical gears |
|
|
Take-up bobbin size |
Φ500-Φ630 |
Φ500-Φ630 |
|
Drawing lubrication |
Immersing type |
|
|
Bearing lubrication |
By enforced oil pump |
