Application:

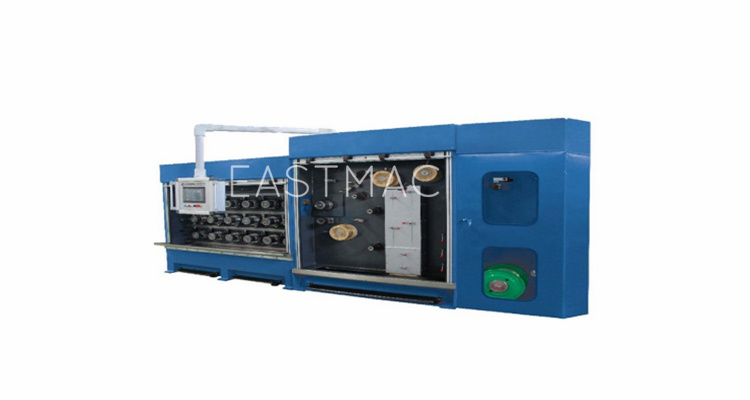

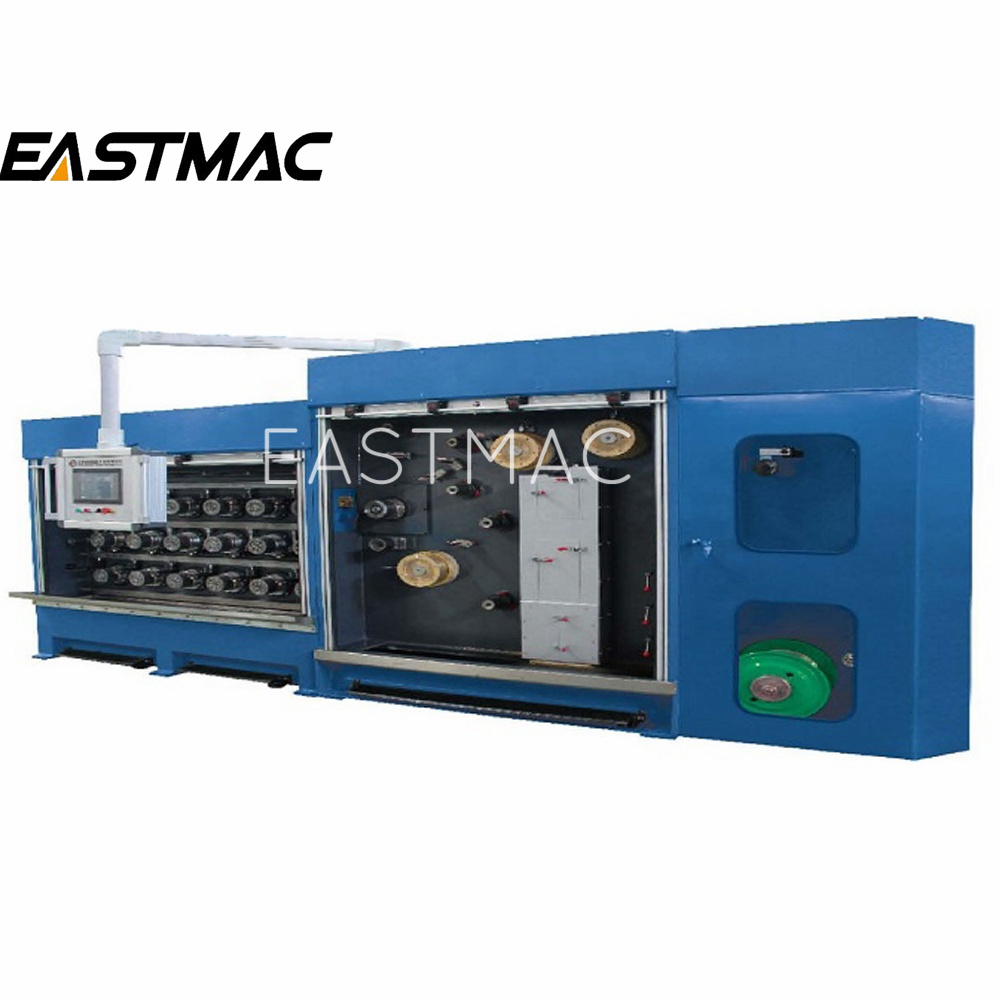

Multi Wire Drawing Machine with Continuous Resistance Annealing for 4 copper wire is special for drawing and annealing
for copper wires 0.25-0.7mm. Finished wire is wound by 300-400mm or 500-630 steel bobbin.
Feature:
1) More stability, high production efficiency, low noise and easy to operation.
2) Space saving around 50%
3) Electricity Saving around 10%; Labour Saving 50%
4) High efficiency for next pay-off progress.
5)Quick die change system for dies quantity saving 30%.
6)Two clutches for faster speed.
Main Technical Data:
| Machine Type | DT18/120.4 |
| Drawing Wire No. | 4 Wires |
| Max. Die No. | 18 |
| Max.Inlet Dia.(mm) | 1.85 |
| Outlet Dia.(mm) | 0.25 ~ 0.7 |
| Drawing Capstan Dia. (mm) | 120 |
| Max.Drawing Speed.(m/s) | 25 |
| Capstan | Ceramic coated or Zirconium |
