Application:
Rubber Continuous Vulcanizing Line is a special machine for the purpose of insulating, sheathing and continuous vulcanizing rubber wire and cable. The rubber materials include natural rubber, EPR, EPDM, EVA, CPE, EPOM,CR, Silicone Rubber and so on. The cable which is made by this machine can be used in mining, marine, shipboard etc.
Main Technical Data:
| ITEM | XJ-90/16 | XJ-120/16 | XJ-150/16 | XJ-65/14+XJ-90/16 | XJ-90/16+XJ-120/16 | XJ-65/16+XJ-120/16+XJ-90/16 | XJ-90/16+XJ-150/16+XJ-120/16 |
| Dia. before extruding (mm) | Φ5~Φ20 | Φ12~Φ50 | Φ20~Φ8 | Φ5~Φ30 | Φ15~Φ80 | Φ15~Φ80 | Φ20~Φ90 |
| Dia. after extruding (mm) | Φ30 | Φ60 | Φ90 | Φ40 | Φ90 | Φ90 | Φ110 |
| Max.extruding speed (m/min) | 30 | 30 | 20 | 30 | 20 | 20 | 20 |
| Max. output (kg/h) | 150 | 380 | 550 | 70+150 | 150+380 | 70+150+380 | 150+550+380 |
| Heating area | 5 | 6 | 6 | 5+5 | 5+6 | 5+5+6 | 5+6+6 |
| P/O reel | Φ1600 | Φ2500 | Φ2500 | Φ2000 | Φ2500 | Φ2500 | Φ2500 |
| T/U reel | Φ2500 | Φ3150 | Φ3150 | Φ2500 | Φ3150 | Φ3150 | Φ3150 |
| Capstan type | TQDV2000 | TQDV2500 | TQDV3000 | TQDV2000 | TQDV3000 | TQDV3000 | TQDV3000 |
Main Parts:

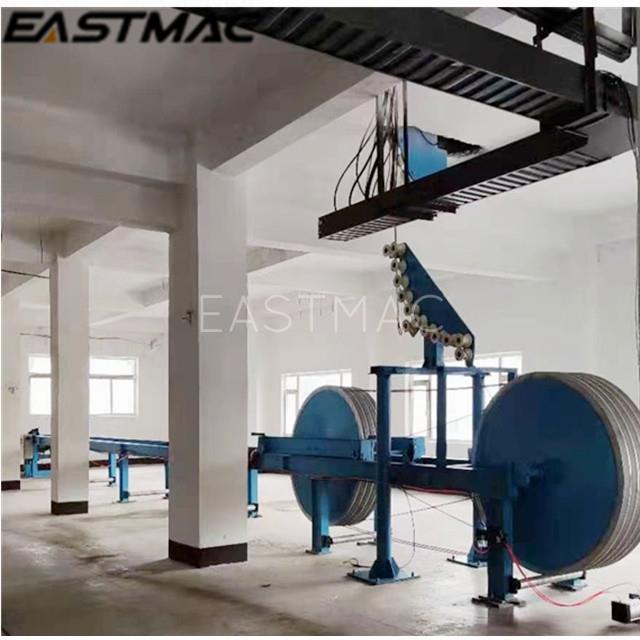

| (1) | Φ800~φ2000 Portal Type Pay off | 1set |
| (2) | Φ800 Horizontal type accumulator | 1set |
| (3) | Cable catcher (with guiding roller) | 1set |
| (4) | P/O length counter (dual-wheel type) | 1set |
| (5) | 2000 caterpillar (6 pairs of cylinder) | 1set |
| (6) | Φ300 position dancer (guiding roller) | 1set |

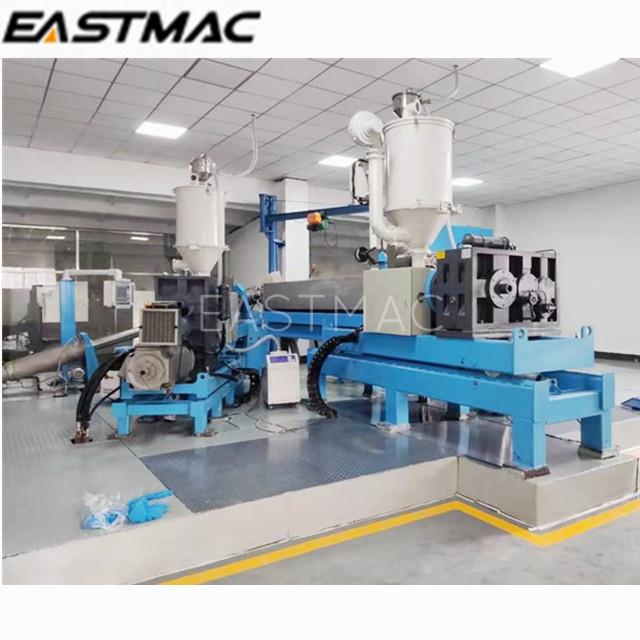

| (7) | XJ-90/16 Extruder (compelling feeding material) | 1set |
| (8) | XJ-60/14 Extruder (compelling feeding material) | 1set |
| (9) | Cross head (Single layer, Dual Layer, Dual color) | 1 set |
| (10) | Temperature controlling unit | 7 sets |
| (11) | Splice box (driven by hydraulic) | 1set t |

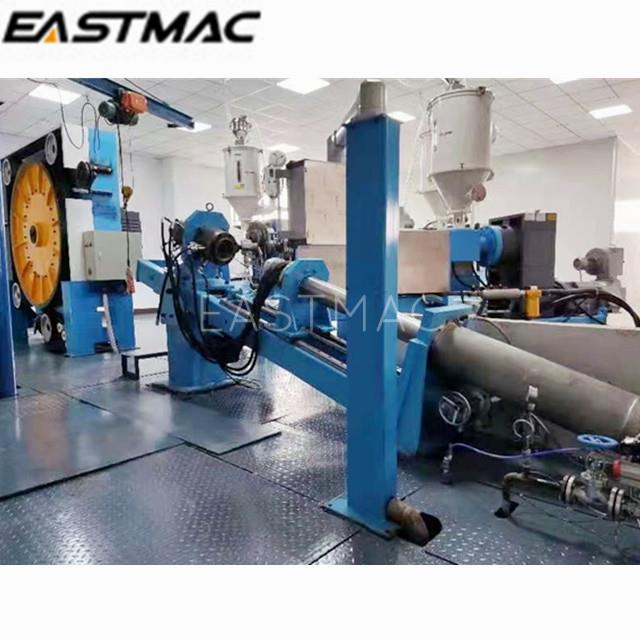

| (12) | Vulcanizing pipe and supporter | 1set |
| (13) | Position controller | 1set |
| (14) | Water/Steam balance control system | 1set |
| (15) | End seal box (driven by hydraulic) | 1set |
| (16) | Air blower | 1set |
| (17) | 2000 caterpillar (6 pairs of cylinder) | 1set |
| (18) | Φ1000 Horizontal type accumulator | 1set |
| (19) | 1600 helper caterpillar (4 pairs of cylinder) | 1set |
| (20) | Diameter Gauge (Online/50mm) | 1set |
| (21) | Spark tester (15KV, chain type) | 1set |
| (22) | T/U length counter (dual-wheel type) | 1set |
| (23) | Φ1250~Φ2500 portal type take up | 2sets |

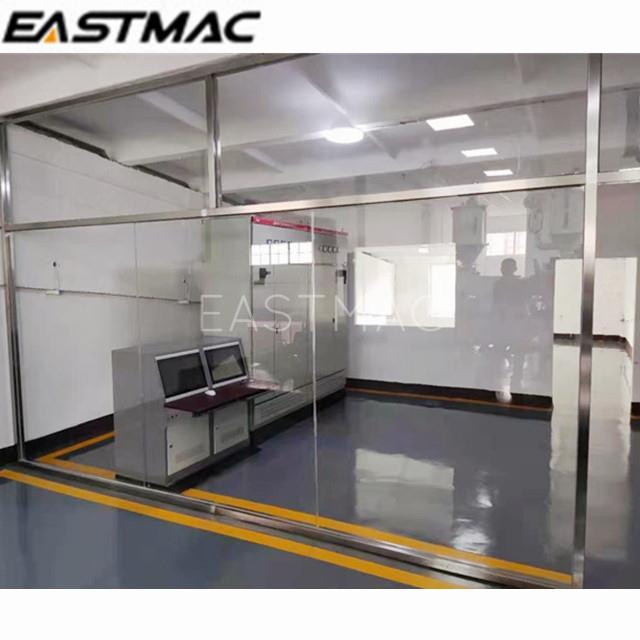

| (24) | Electrical control system | 1set |
| (25) | Operating panel | 1 set |
