Application:

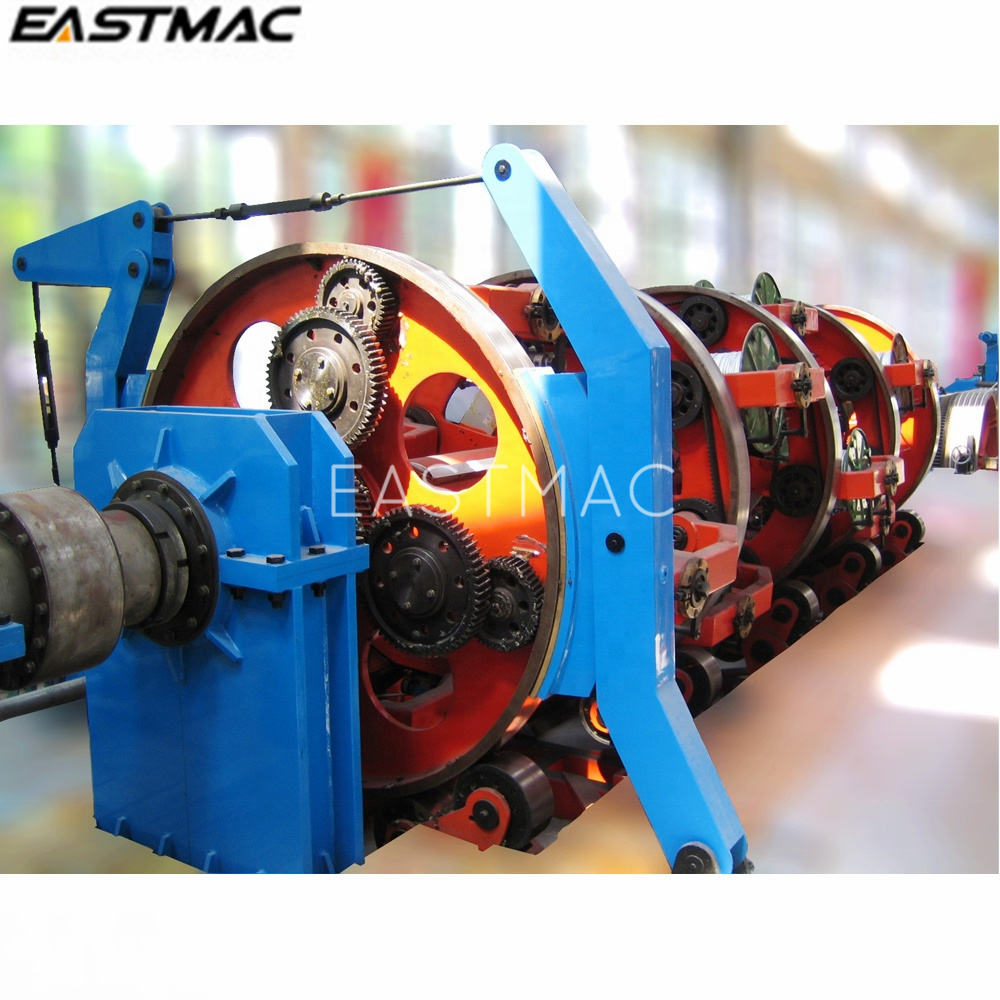

Planetary type steel wire armoring machineis mainly used for stranding with back-twisting AL clad steel, OPGW, AL alloy conductor, copper and AL stranding wire and AL stranding wire with steel core.
Products produced by Planetary type steel wire armoring machine:
Main technical data:
|
AL,AL alloy single wire |
1.8-5.0mm |
|
High strength steel wire |
1.2-3.0mm |
|
Middle carbon steel wire |
1.8-4.5mm |
|
AL clad steel |
1.8-4.8mm |
|
Stainless steel optic fibre |
1.8-4.8mm |
|
Max finished wire dia |
35mm |
|
Max speed of cage |
70r/min |
|
Mar. linear speed |
45m/min |

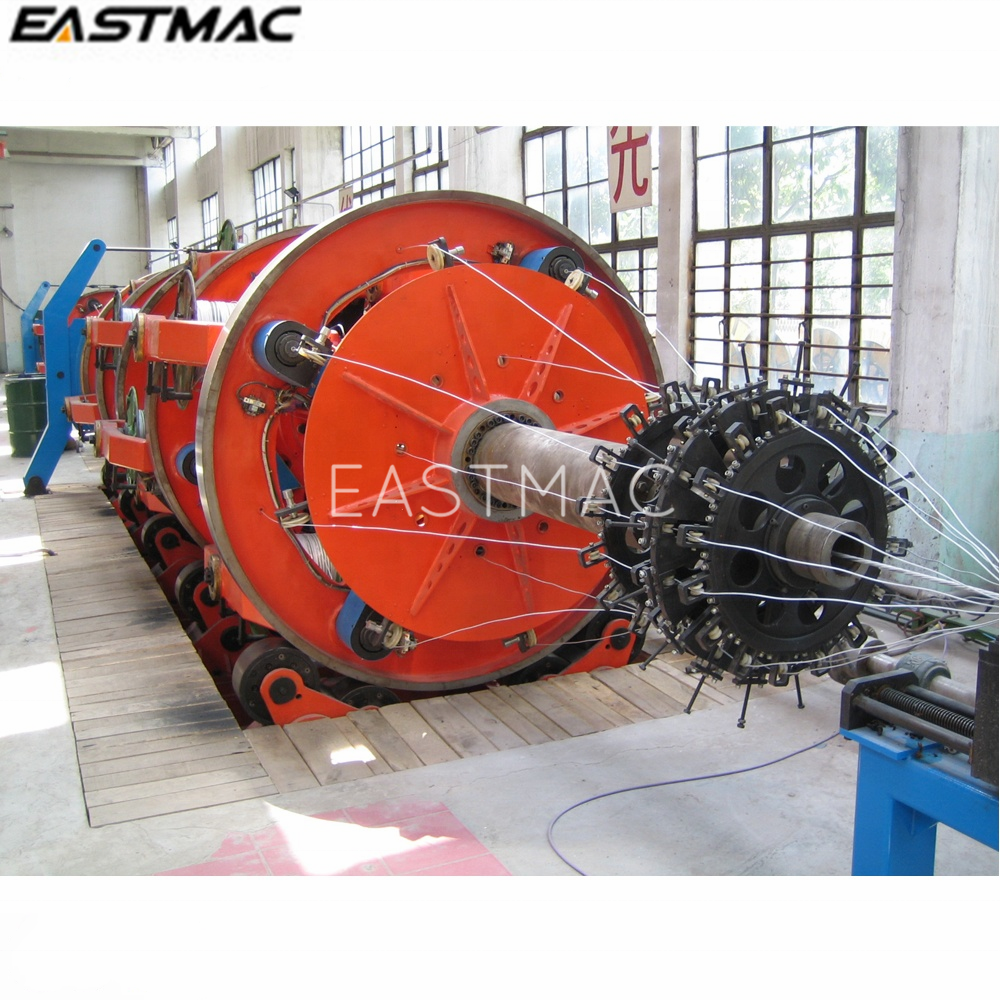

Main Parts:
1. 1600 portal pay-off stand
2. Pay off tension controller
3. 8B cage
4. 16B cage
5. Wire assemble die
6. Meter counter
7. 1600 dual capstan device
8. 2500 portal take up with traverse stand
9. Mechanism transmission system
10. Electric control system
11. Safety fence
