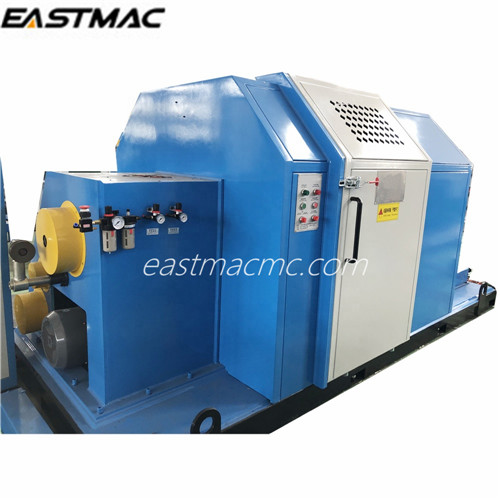

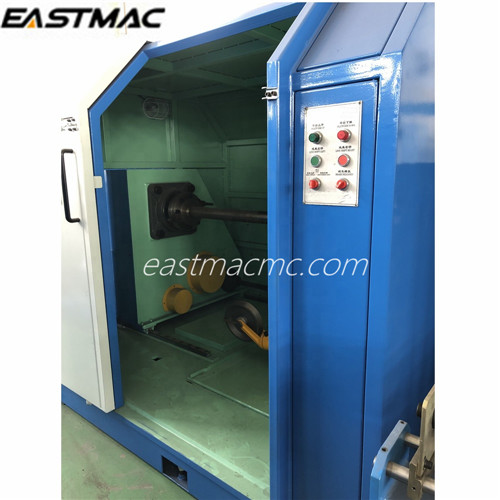

Application: for various power wire, CAT 5 and ultra CAT 5 and CAT 6 data cable,communication cable and other special cable for high speed cabling twist,meanwhile, finish central wrapping.
Main technical data:
|
Model |
400-500 |
630 |
800 |
1000 |
1250 |
|
Pay-off bobbin(mm) |
300-400mm |
400-500-630 |
400-500-630 |
400-500-630 |
400-500-630 |
|
take-up bobbin(mm) |
500 |
630 |
800 |
1000 |
1250 |
|
Wire diameter(mm) |
0.5- 2.0 (Soft structure) |
0.6- 3.0(Soft structure) |
0.6-3.0(Soft structure) |
1.0-5.0 (Soft structure) |
1.0-5.0 (Soft structure) |
|
Max twsit diameter(mm) |
Φ6 |
Φ15 |
Φ20 |
Φ25 |
Φ30 |
|
Lay length(mm) |
13-80 |
20-200 |
30-300 |
30-350 |
30-350 |
|
Roatte speed(RPM) |
850 |
1000 |
800 |
800 |
500 |
|
Take-up tension |
Auto tension,adjust freely |
||||
|
Traverse method |
According to bobbin speed reciprocating movement to adjust |
||||
|
Traverse pitch(mm) |
2.5-10 |
2-12 |
3-20 |
3-30 |
3-30 |
