Application:
The production line use different dies to produce metal sheathing for railway signal cables, flexible fireproof cables, medium voltage cables, copper alloy through ground wires for high speed train and other cables. The production line can produce metal sheath for railway signal cables, flexible fireproof cables, medium-voltage cables etc. After precise cutting the clean copper tape’s two sides (or aluminum tape and stainless steel tape), used the special welding fabrication mould is used for longitudinal shaping and continue welding longitudinal seam with protection of indifferent gas. The finished products are made through reduction diameter pipe.

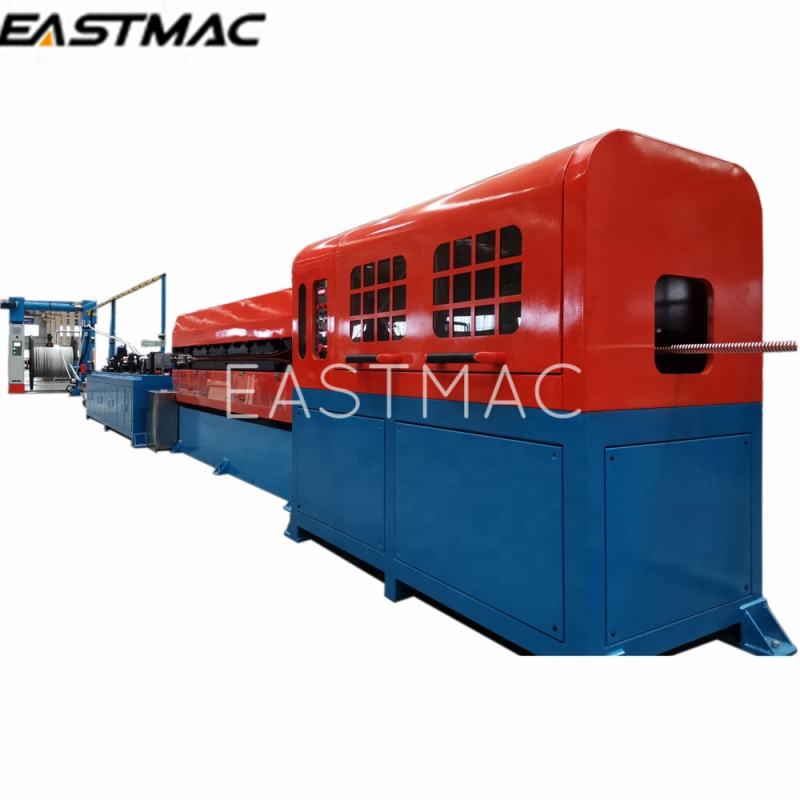

Products produced by DAG10-60 metallic pipe forming and corrugating tandem line:
Main technical data:
|
1 |
Welding dia. |
30-90mm |
|
2 |
Cable dia. |
25-85mm |
|
3 |
Welding material |
Copper tape, Al tape, Stainless steel tape |
|
4 |
Linear speed |
0-20mpm |
|
5 |
Welding current |
30-300A |
|
6 |
Corrugating shape |
Ring type and spiral type |
|
7 |
Corrugating depth |
0.5-4mm |
|
8 |
Corrugating pitch |
5-25mm |
Main Parts:
1. Φ2000 portal type pay off
2. Wire guide stand
3. Driving tape pay off
4. Tape Pay off tension speed control device
5. Tape connecting machine
6. Welding platform
7. Inlet Tape positioning device
8. Precision Cutter device
9. Outlet tape positioning device and tape straightening device
10. Waste edge collecting device
11. Precisiong wheel type forming device
12. Welding die stand and sizing device
13. Straight shank welding gun
14. Circle Cooling system Welding gun
15. Three-dimensional adjust device for gun
16. Welding arc monitoring device
17. Argon arc Welding machine
18. Air supply adjust system
19. Welding Lubrication cooling device
20. 2000kg caterpillar

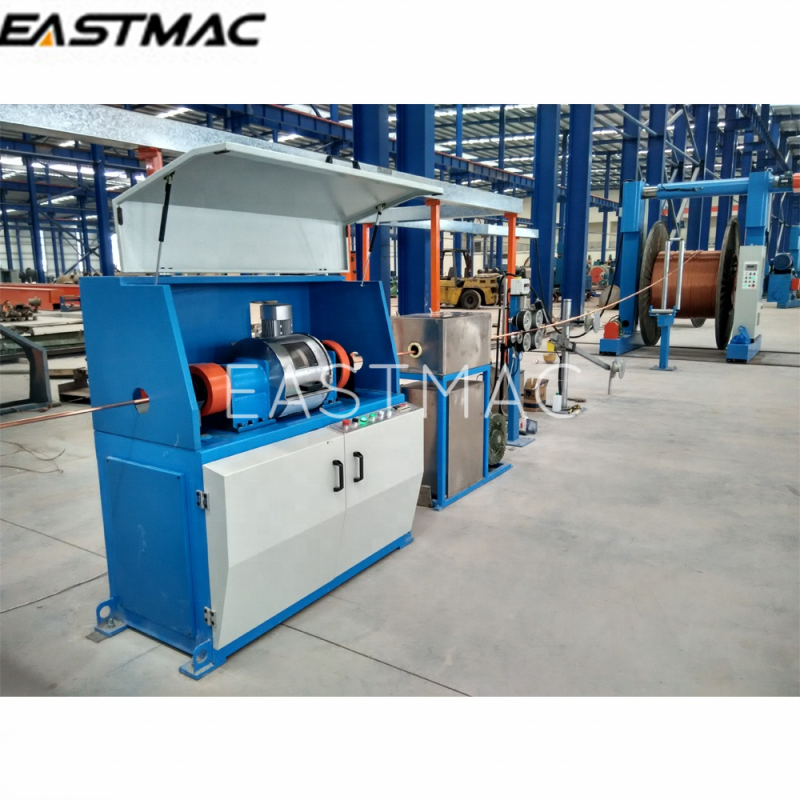

21. Eccentric type high speed corrugation device(electric type)
22. Lubrication, cooling device for corrugation
23. Cleaning and blow system
24. Meter counter
25. Take up tension controller
26. Φ2000 portal type take up with traverse
27. Electrical control system
