Application:
SJ90X25 is used to extrude sheathing for Normal optical cable and Micro optical cable. The line will be manufactured after
the seller gets the order. 100% brand new.
1.1 Produce inner sheathing
1.2 Produce outer sheathing
1.3 The extruding materials: LDPE,MDPE,HDPE,HFFR,LSZH/PA12 and so on.
Products produced by Sheathing Machine:
Main technical data:
|
Diameter of cable core |
5-30mm |
|
Diameter of loose tube |
4-6mm |
|
Diameter of cable |
5-35mm |
|
Thickness of cable wall |
1.0-3.0mm |
|
Line structure speed |
150m/min |
|
Line production speed |
90m/min(cable dia:10mm) |
|
Additional attenuation |
0.02dB/km (1310and 1550) |
|
Extruder output |
Max280kg/h |
Main Parts:

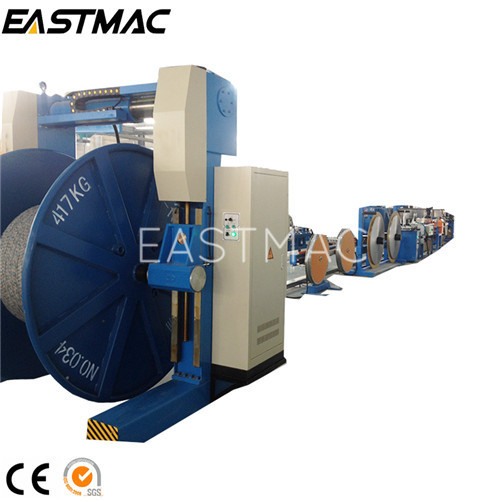

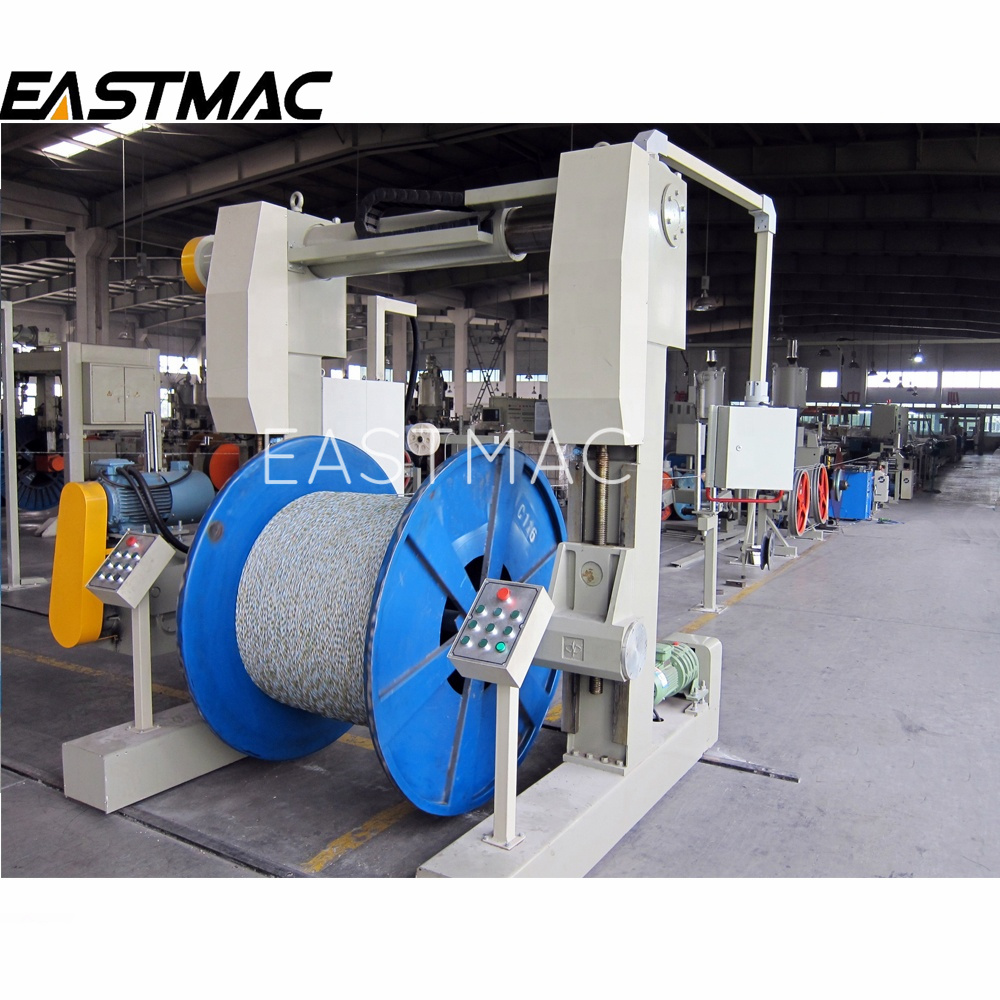

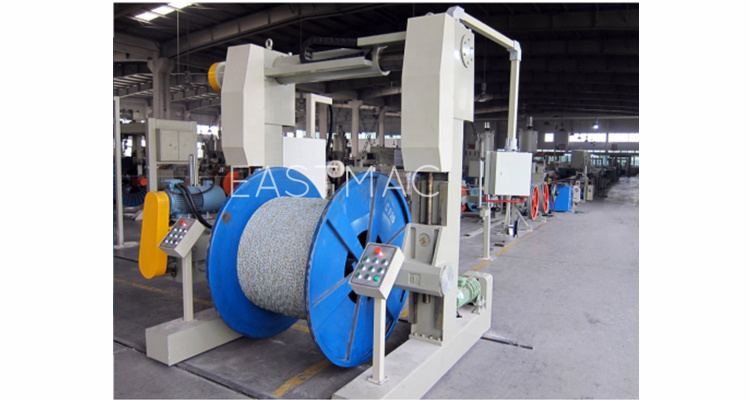

2.1 LSP1800 Portal type rail travelling pay-off
2.2 Dancer with tension controller
2.3 Loose tube pay-off
2.4 Messenger wire pay-off
2.5 Aramid yarns stranding device
2.6 Dual Pad Metal Tape Pay-off
2.7 On-line seam welding device for Steel(Aluminum) tape
2.8 Metal Tape (steel-aluminum ) accumulator
2.9 Metal Tape (Steel-Aluminum) corrugating device
2.10Metal Tape (Steel-Aluminum) longitudinal forming device
2.11 Cable jelly filling device
2.12 Water Blocking tape pay off
2.13 Rip Cord Pay-off
2.14 SJ90×25 extruder
2.15 Cross head
2.16 Vacuum application unit
2.17 Loader and hopper compound dryer
2.18 Hot-water tank and 4m movable hot-water trough
2.19 Double-layer stainless steel cooling-water trough
2.20 Blow dryer device
2.23 Hot foil length printer
2.24 Caterpillar 800kg
2.25 Swaying beam type tension dancer for take-up
2.26 LSP1800 Portal type rail travelling take-up with traverse
2.27 Electrical control system
