Application:

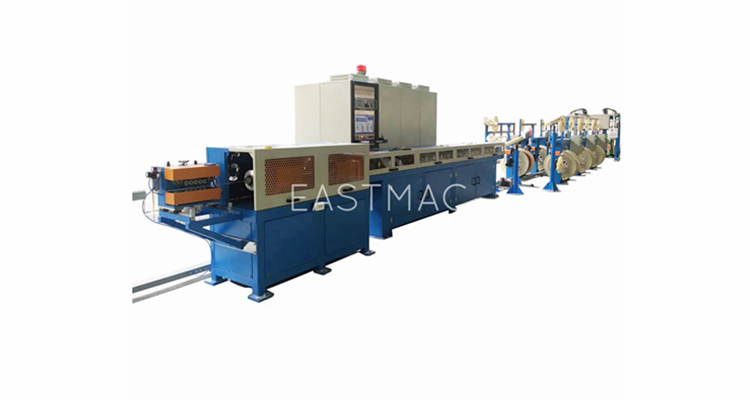

SZ stranding line is used for SZ stranding of loose tube elements 1.2-3.0mm.
Products produced by SZ stranding line:
Main technical data:
Cable-making dia. Max |
2.5mm - 20mm |
FRP |
0.6mm - 10mm |
Loose tube dia. |
1.2 - 3.0 mm |
Structure speed |
100m/min |
Cable-making pitch |
50-300mm |
SZ stranding head speed |
1800rpm |
Binding head speed |
4000rpm |
Binding pitch |
12-50mm |
Additional attenuation(1310and 1550) |
max.0.02dB/km |
Main Parts:
1. 1600 Portal type rail travelling pay-off
2. Dual wheel tension
3. Three wheel tension
4. Wire holing device
5. Water proof yarn pay-off
6. CSM jelly filling device
7. 800 pay-off stand for loose tube
8. Four motor driven SZ oscillator
9. Dual concentric binder
10. Jelly filling device cable core
11. Water-proof tape pay-off
12. Longitudinal tape applicator and single concentric binder
13. 800 capstan
14. Dual wheel tension
15. Three wheel tension
16. 1600 Portal type rail travelling take-up with traverse
17. Electrical control system
