Product Description

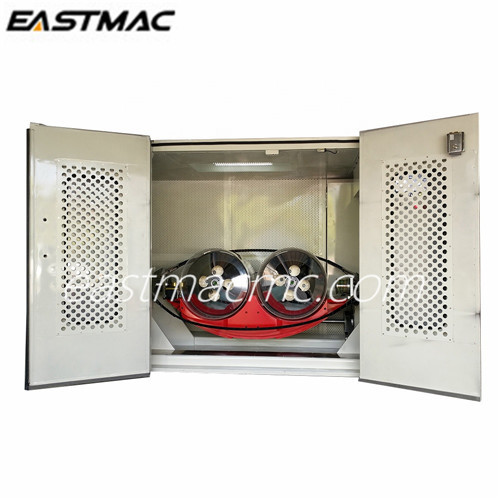

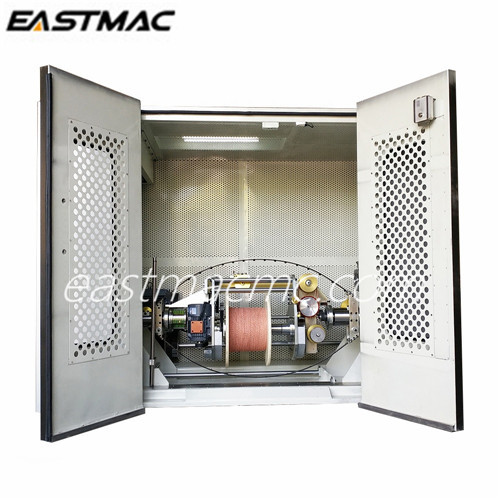

Application: Quadruple Twister is used to produce Lan cable CAT5E CAT6A CAT7 CAT8.
Features
All in one key set on PLC, asjustable back twisting ratio
Integrated structure , pay off , take up and capstan within , occupies less space
Zero tension flyer pay off , with back twisting pay off at the same time , more stable performance for cable
Quadruple pitches finish in one time , 2 times efficiency than double twist machine
Main technical data:
| Model | 500 | 630 |
| rotate speed | max.1800rpm | max.1800rpm |
| cores diam | 0.8-1.7mm | 0.8-1.7mm |
| finished OD | 1.6-3.4mm | 1.6-3.4mm |
| pitch range | 5-50mm | 5-50mm |
| back twist ratio | 0-100% | 0-100% |
| bobbin | 500 pay off,500take up | 500 pay off,630take up |
| tension type | active slide rail type | active slide rail type |
| tension range | 0.6-3kg | 0.6-3kg |
| pitch tolerance | ±2% | ±2% |
