Application:

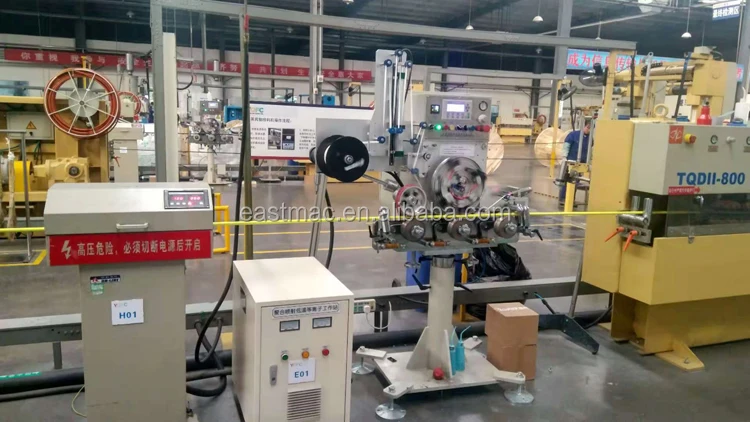

Motorized hot foil tape printing machine with the function of tape breaking alarming : heating and pressing the color tape and the accurate metering wheel. Some signs (such as factory’s name, type and length etc) can be printed on the cable. In order exchange the color band conveniently, the double reels’ stand has been designed. At the same time, the denominator and the color band can be exchange for the different users.
Main technical data:
|
Metering range |
0~99999m |
|
Metering accuracy |
0.2% |
|
Bobbin belt size |
1km and 20km |
|
The color of belt |
white, yellow. 10mm/8mm |
|
Motor |
servo motor |
|
Cable diamter |
Φ5 – 100mm |
|
Line speed |
Max. 80m/Min |
