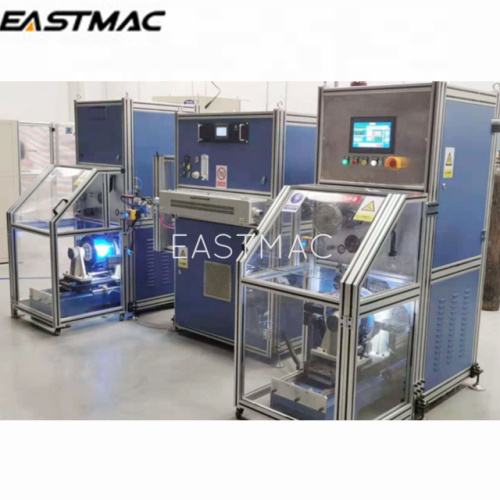

Application:
The machine is mainly used to color the surface of optical fibers and makes it easy to identify the multi-fibers
within the loose tube. Also used to rewind fibers.

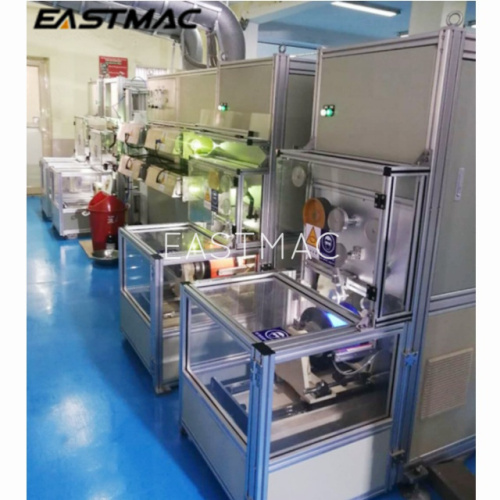

Products produced by Optical fiber ribbon production line:
Main technical data:
|
Optical fiber number |
1 |
|
Structure speed |
≤3000m/min |
|
Coloring speed |
≤2600m/min(Nitrogen gas ) |
|
Rewinding speed |
≤2600m/min |
|
Thickness of coloring layer |
3-5μm |
|
Pay-off tension |
0.3N-1.5N±0.05N |
|
Take-up tension |
0.3N-1.5N±0.05N |
|
Traversing pitch |
0.1-1.0mm±0.01mm |
|
Extra-attenuation after coloring |
≤0.02dB/Km(SM , 1500Nm) |
|
Optical fiber reel size (max.) |
25km/50km reel weight 10kg |
|
Nitrogen purity |
≥99.99% |
|
Compressed air |
0.5mpa |
Main Parts:
1 Movable optical fiber pay-off unit
2 Direction control
3 Fiber coloring and material supply system
4 UV curing oven
5 Capstan and counter unit
6 Take-up and traversing unit
7 Operation station
9 Electric control system and software
10 Air fan
