Product Description
Application:

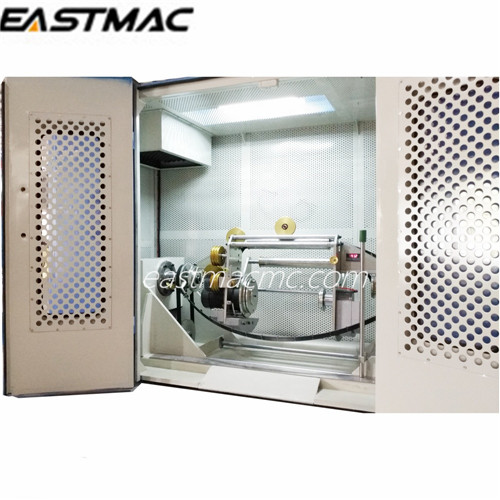

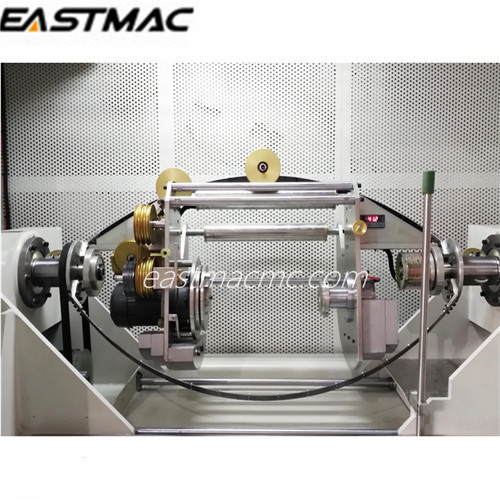

Wire triple twister is mainly used for Lan Cable CAT5 , CAT5E , CAT6.
Features
Triple pitches design , 1.5 times speed to traditional double twisting machine when with 33% backtwisting rate
Twist pitch controlled via servo motor , user friendly HMI control , full programmable accuracy within ± 2%
Active take up , tension stable from empty to full reel
Main technical data:
Model | 500 | 630 |
rotate speed | max.1800rpm | max.1800rpm |
cores diam | 0.8-1.7mm | 0.8-1.7mm |
finished OD | 1.6-3.4mm | 1.6-3.4mm |
pitch range | 5-50mm | 5-50mm |
back twist ratio | 0-98% | 0-98% |
bobbin | 500 pay off,500take up | 500 pay off,630take up |
tension type | active slide rail type | active slide rail type |
tension range | 0.6-3kg | 0.6-3kg |
pitch tolerance | 2% | 2% |
