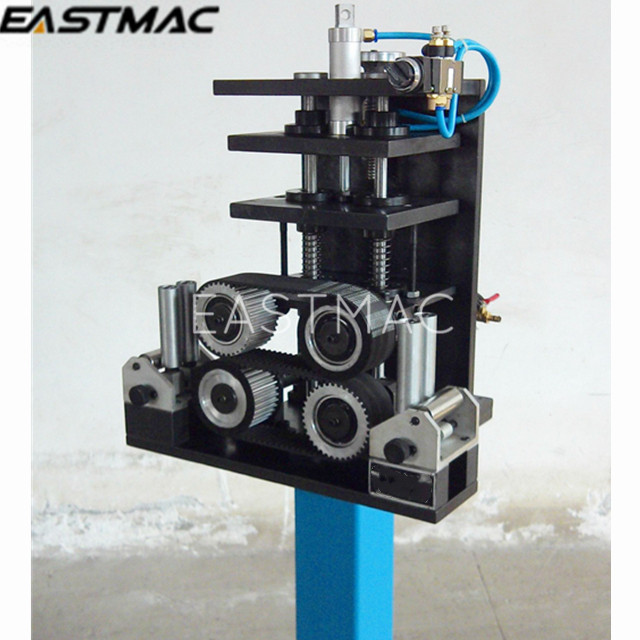

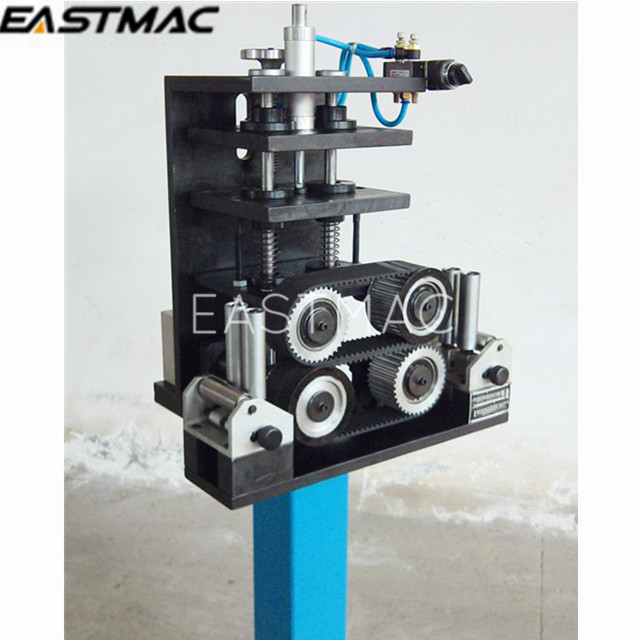

Hot sale Caterpillar type Meter counting wire length measuring device for take-up machine

Item No.: 00504
Caterpillar type structure, cylinder-type clamping, adjustable clamping and loosening, guiding rollers are installed at cable inlet and outlet, equipped with a digital display.
  • Brand NameEASTMAC
  • Place of OriginChina
  • PortShanghai
  • Supply Ability20 sets per month
  • Payment TermsL/C, T/T
  • More Less
    Description
    Description

    Application:

    Caterpillar type structure, cylinder-type clamping, adjustable clamping and loosening, guiding rollers are installed at cable inlet and
    outlet, equipped with a digital display.



    Main Technical Data:

    Applicable cable dia.    ø20~ø110mm
    Max. counting length      9999.9m
    Meter counting accuracy         ≤3‰
    Central height    1010mm (adjustable mechanically)
    Guiding roller dia.       60mm
    Power supply           AC220V (±5, 50Hz)
    Operation direction according to user‘s request
    Brands info

    Bearings:                                     NSK

    Timing belt:                                  Gates

    Pneumatic components  :            Airtac

    With the function of counting electrically. Signal will be got by sensor.
    Considering the heavy cable, the machine will equipped with 4 timing belt rollers, and the width of timing belt would be 130mm.
