LS5TY-A(J5-A) Hydraulic Desktop Cold Welding Machine
Feature:
The wiring range of hydraulic cold welder is from 1.00mm~25.00mm. According to the different wiring range, there are four models: LS3TY, LS4TY, LS5TY, and LS6TY. The hydraulic parts are all manufactured by well-known professional manufacturers, and their performance is stable and reliable. The oil cylinder adopts high-strength precision cold drawn oil cylinder, and the piston rod of the oil cylinder is specially treated on the surface. Ensure its high strength, high corrosion resistance and corrosion resistance. All control voltages are low voltage, and safety has passed CE certification.
Technical parameters:
|
The range of wire |
Cu:Φ4.00mm-8.00mm |
AI:Φ4.00mm-15.00mm |
|
Power of motor |
5.5KW |
|
|
Work pressure |
6.5MPa |
|
|
External dimension |
L1190*W570*H1100mm |
|
|
Weight |
650kg |
|
LS3T-D(J3-D) cold welding machine
The Frame is ductile iron:
|
Dimensions |
L280*W180*H300mm |
|
|
Weight |
33KG |
|
|
The range of wire |
Cu:1.00mm-3.25mm |
AI:1.00mm-5.00mm |
LS4TY(J4) cold welding machine
|
The range of wire |
Cu:Φ2.00mm-5.00mm |
AI:Φ2.00mm-8.00mm |
|
Power of motor |
1.5KW |
|
|
Work pressure |
6.5MPa |
|
|
External dimension |
L620*W550*H1000mm |
|
|
Weight |
220kg |
|

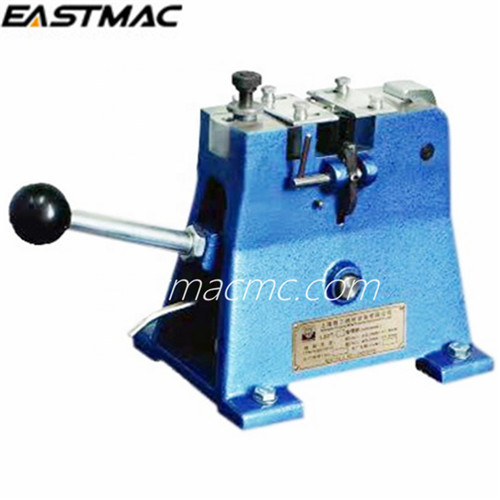

LS2T-B(J2-B) cold welding machine
The organism is made of the nodulap cast iron
Technical parameters:
|
Dimensions |
L220*W160*H230mm |
|
|
Weight |
11KG |
|
|
The range of wire |
Cu:0.30mm-1.20mm |
AI:0.30mm-1.40mm |

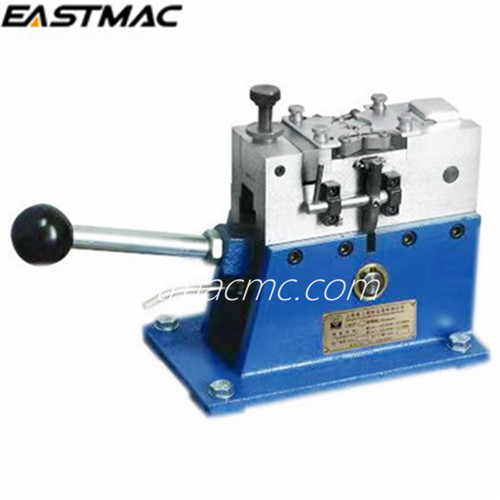

LS2T-A(J2-A) cold welding machine
The organism is made of the cast steel
Technical parameters:
|
Dimensions |
L220*W130*H200mm |
|
|
Weight |
9.5KG |
|
|
The range of wire |
Cu:0.30mm-1.20mm |
AI:0.30mm-1.40mm |
