Application:

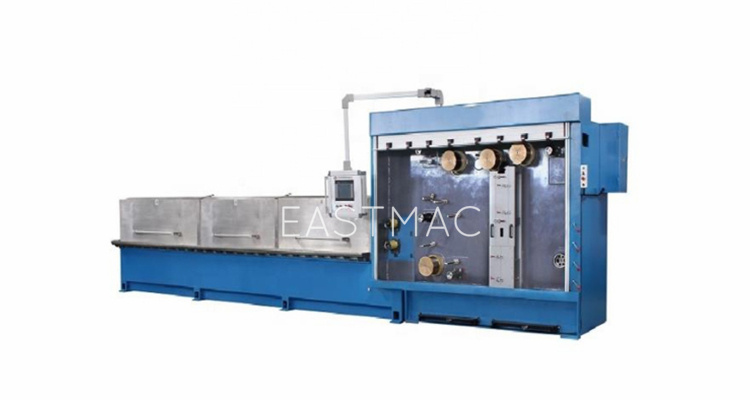

This Multi Wire Drawing machine is special for drawing and annealing for copper wires 0.25-0.70mm.
Feature:
1) More stability, high production efficiency, low noise and easy to operation.
2) Space saving.
3) Electricity Saving and Labour Saving .
4) High efficiency for next pay-off progress.
5) Quick die change system for dies quantity saving 30%.
6) Two clutches for faster speed.
Main Technical Data:
| Machine Type | DT21/100.8.C | DT21/100.8.A |
| Drawing Wire No. | 8 Wires | 8 Wires |
| Max. Die No. | 21 | 21 |
| Max.Inlet Dia.(mm) | 2.6 | 2.0 |
| Outlet Dia.(mm) | 0.25 ~ 0.7 | 0.15 ~ 0.4 |
| Drawing Capstan Dia. (mm) | 100 | 100 |
| Max.Drawing Speed.(m/s) | 30 | 30 |
