Product Description

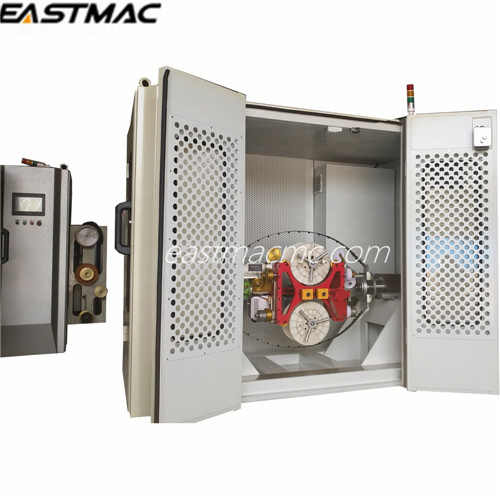

Application: Three Cores Torsion Free Pair Twister Wire Cable Machine is used to produce HDMI DP USD Medical Cables.
Flexible Design
Integrated twisting and taping optional,Optimize design , easy for operation
Large wheel diam.
Large wheel dia. of capstan , with rubber cover better for wire performance
Features
Core wire 100% torsion free , no stress on wire materials
Power control , take up tension stays constant from empty to full reel
Servo driven electronic pitch , PLC direct setting , tolerance within ±2%
Large wheel diameter of capstan and pulleys , less bend on wires , less damage on performance
Main technical data:
Model | 300 | 400 | 500 |
rotate speed | max.1500rpm | max.1500rpm | max.1500rpm |
cores diam | 0.2-0.45mm | 0.45-1.0mm | 0.8 - 1.7mm |
finished OD | 0.4-0.9mm | 0.9 - 2.5mm | 1.6 - 3.4mm |
pitch range | 5-25mm | 5-25mm | 40-80mm |
bobbin | 300 | 400 | 500 |
tension type | active slide rail type | active slide rail type | active slide rail type |
tension range | 0.1-0.4kg | 0.2-1kg | 0.6 - 3 kg |
pitch tolerance | 2% | 2% | 2% |
