Application:

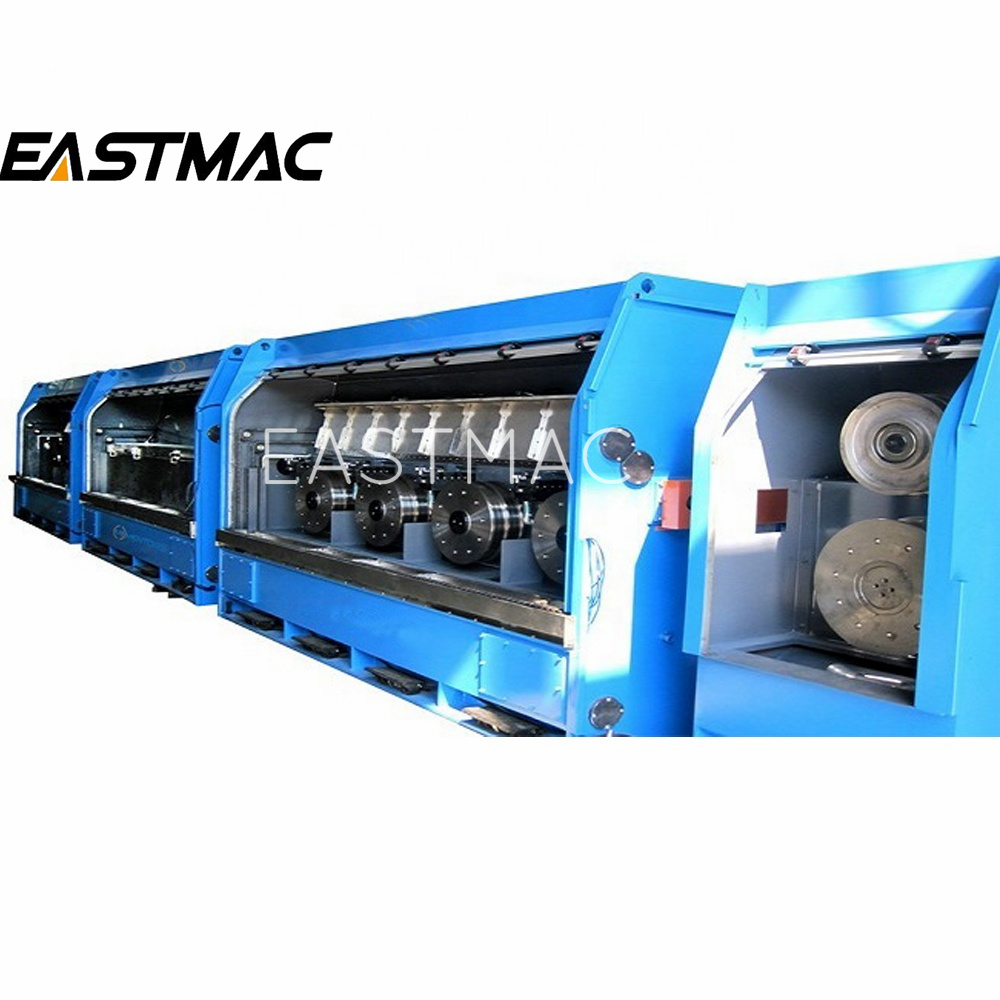

Two wires Copper Rod Breakdown Machine can produce two copper wires with annealing at the same time.Especially
suitable for the factory which has high production capacity request.
Feature:
1)Every drum is run by single motor with drivers.
2)Two wires produce at the same time to ensure high production capacity.
3)Energy saving, space saving.
4)Door up and down automatically make threading easily.
5)Tension rate can be adjustable according to different raw material.
6)Quick die change system.
7)Full immersion guarantee the wire’s cooling and lubrication.
8)Drum box body is separated with transmit part, mechanical labyrinth seal type, to avoid drawing oil and gear oil mixed.
9)Three or four section AC annealing, full digital control, make wire with good elongation.
Main Technical Data:
| LSD450/2 Two Wires Copper Rod Breakdown Machine | ||||
| Machine Type | LSD450/13-2 | LSD450/11-2 | LSD450/9-2 | |
| Drawing Wire No. | 2 Wires | |||
| Drawing Capstan Dia. (mm) | φ450 | φ450 | φ450 | |
| Max. Die No. | 13 * 2 | 11 * 2 | 9 * 2 | |
| Inlet Dia. (mm) | Copper | 2 * φ8 | ||
| Outlet Dia. (mm) | Copper | 2* φ1.2~φ3.5 | 2* φ1.2~φ3.5 | 2* φ2.0~φ3.5 |
| 1*φ3.5~φ4.5 | 1*φ3.5~φ4.5 | 1*φ3.5~φ4.5 | ||
| Max. Drawing Speed (m/s) | 28 | 25 | 20 | |
| Main Motor (KW) | 45 / 55 / 75 /132 KW (AC) | |||
| Capstan Arrangement | Horizontal Type | |||
| Take-up Type (Optional) | Double Take-up/Single Take-up/ Coiler | |||
| Optional Equipment | 450T-2 Horizontal continuous annealing | |||
| Type | 450T-2 | |||
| Annealing Wire No. | 2 Wires | |||
| Annealing Wire Dia.(mm) | 2* φ1.2~φ3.2mm, 1*φ3.5~φ4.5mm | |||
|
Annealing Voltage ( V ) |
0 ~ 55 V | |||
|
Annealing Current ( A ) |
0 ~ 8000 A | |||
| Max. Speed(m/s) | 25 m / s |
