Application:

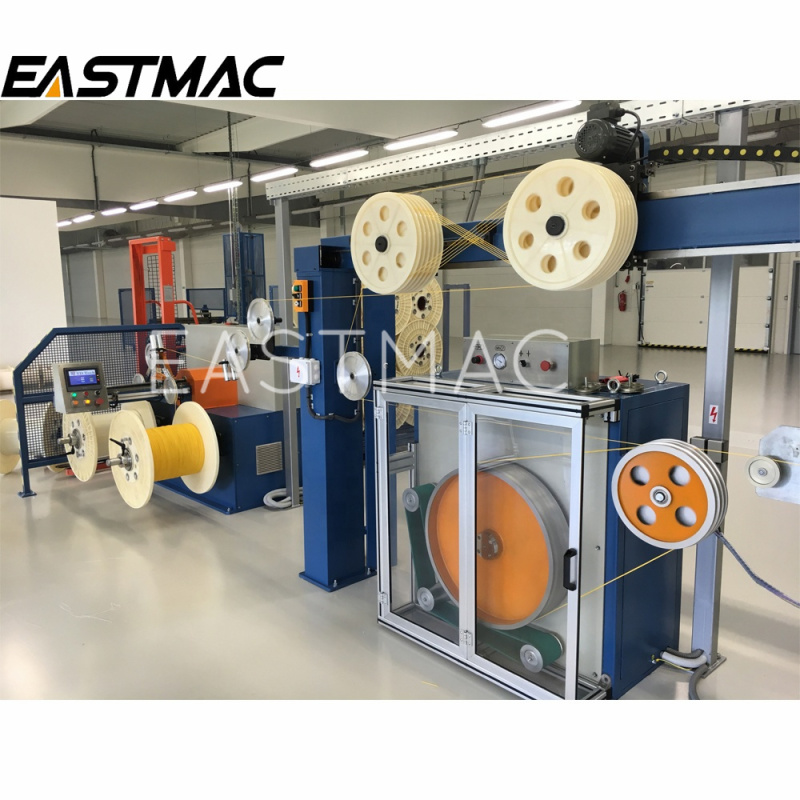

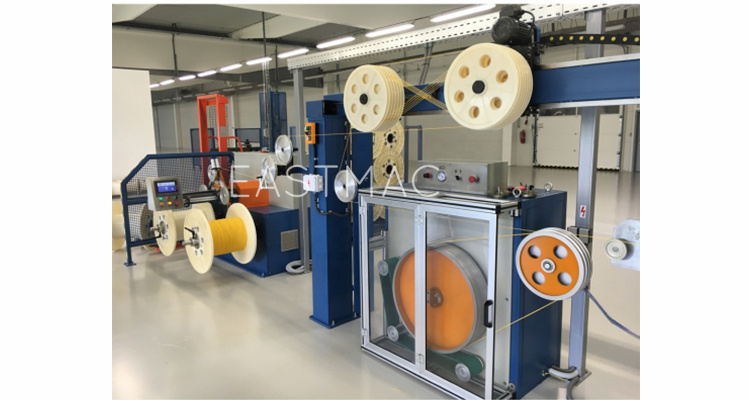

FTTH Cable production line is mainly used to produce 1-4 core FTTH cable, The material can be LSZH, PVC and PE.
Products produced by FTTH Cable Production Line:
Main technical data:
|
Optic-fiber dia. |
0.25mm |
|
The dia. of wire |
0.4-1.0mm |
|
The dia. of self-support wire |
0.5-1.2mm |
|
Size of FTTH cable 1 |
2.0×3.0mm |
|
Size of FTTH cable 2 |
2.0×5.2mm |
|
Structure speed |
180m/min |
|
Speed for 2.0×5.2mm cable (LSZH) |
150m/min |
|
Speed for 2.0×3.0mm cable (LSZH) |
130m/min |
Main Parts:
1. PN800 steel wire pay-off and tension
2. Quadruple optical fiber
3. Preheating device
4. SJ65×25 extruder and one head (With feed, compound dryer device)
5. 4m hot water trough and water tank
6. 12m cooling water trough and refrigerating system
7. Blow dryer
8. Ink-jet device (supplied by the buyer)
9. Diameter control system
10. Φ630 double wheel capstan
11. Accumulator type tension controller (cumulating 100m)
12. Swaying beam type dancer
13. Double reel take-up
14. Electric control system
