Description
Description
Main technical parameters
|
Max Inlet: |
Φ9.5 mm |
|
Outlet: |
Φ1.50-Φ4.50mm |
|
Diameter of capstan: |
450 mm |
|
Max.number of dies: |
13 |
|
Reduction ratio: |
1.238-1.20 (The last one is adjustable) |
|
Max speed: |
25 m/s |
|
Main drawing motor: |
280 KW (AC) |
|
Final capstan motor: |
75KW (AC) |
|

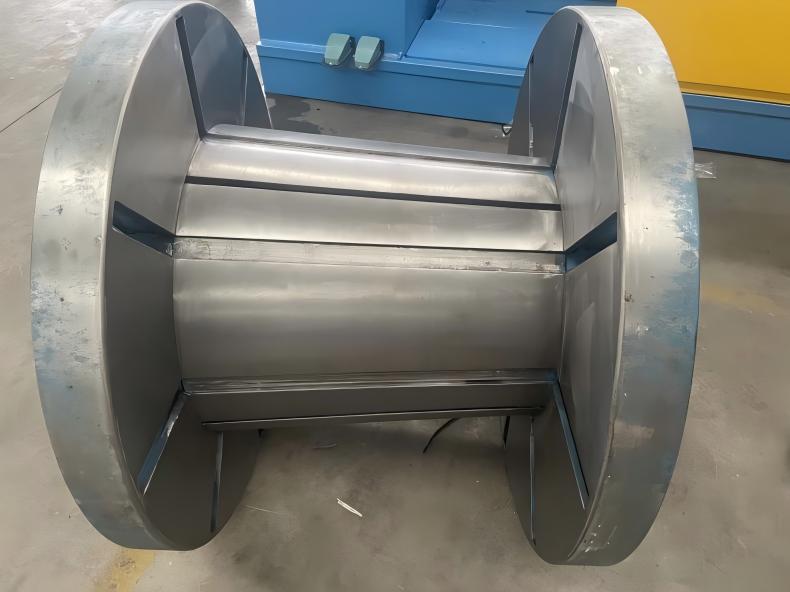

Take up bobbin: |
PND630 mm |
|
Pitch of traversing: |
6.5 mm |
|

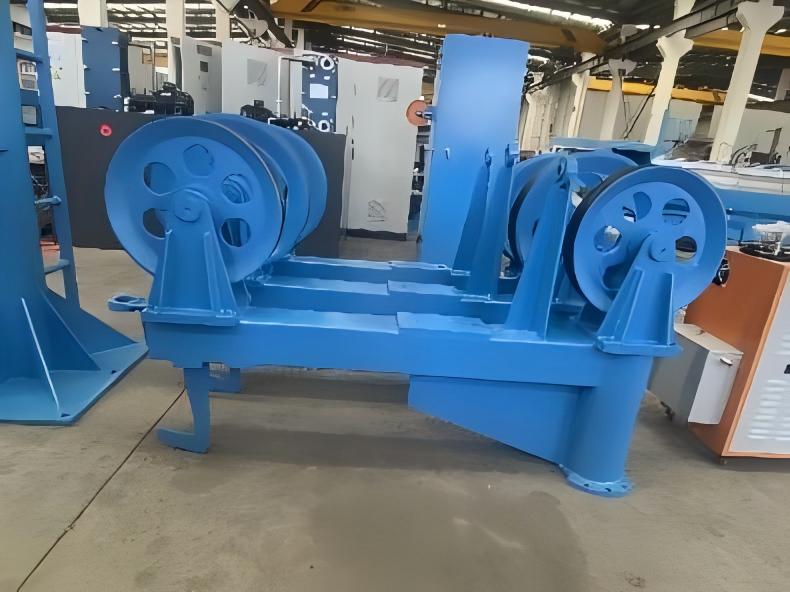

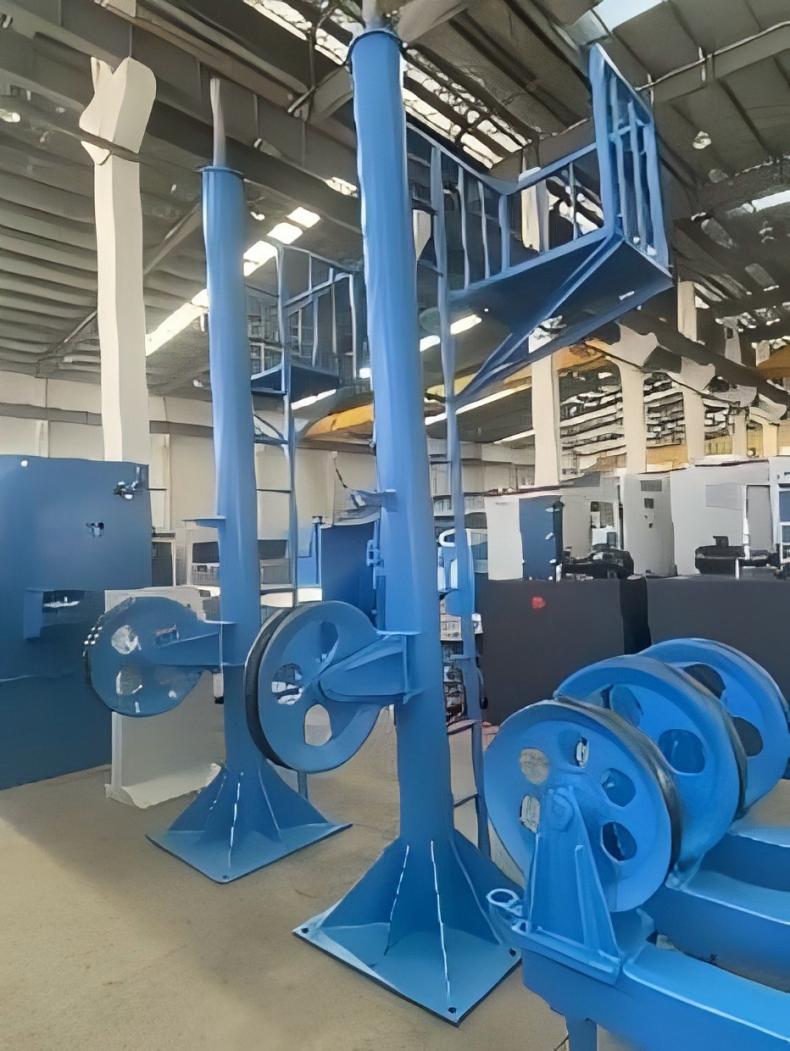

Max.OD of payoff coil: |
2000 mm |

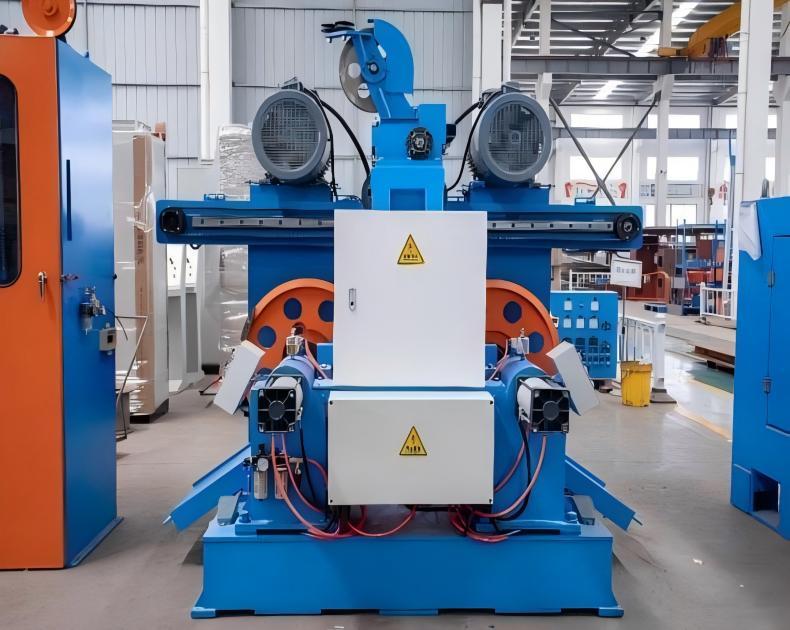

| Double spooler motor: | 2×30KW 2sets |
|
Main power: |
480 KVA |
、
