Performance Characteristics:
- Excellent Welding Efficiency: It has both high-quality and high-efficiency welding capabilities. The power factor reaches 98%, and the three-phase input load is balanced, greatly reducing the impact on the user's power grid.
- Precise Current Control: The output is DC current, with smooth current and zero inductive reactance; Combined with a working frequency of 1000Hz, the time control accuracy can reach 1ms, and the welding accuracy is far higher than that of conventional equipment.
- Excellent Fuselage Structure: The mechanical structure is optimized with high-quality steel plates, and the whole machine has a beautiful appearance and strong rigidity, providing a solid structural guarantee for "stable and high-quality welding effect".
- Convenient Mechanism Design: The electrode voltage mechanism is integrated, with a short air circuit and compact structure. It not only has a fast response speed, but also makes installation and maintenance more convenient.
- Extremely Low Loop Loss: The secondary loop uses high-quality conductive materials, which greatly reduces loop impedance, improves electric energy utilization efficiency, and is more energy-saving.
- High-end Core Components: Key components such as cylinder directional valves and energy storage components all use international famous brands, and the overall quality of the machine reaches the first-class level in the industry.
- Convenient Intelligent Control: Equipped with a medium-frequency welding controller, it can accurately control the actual welding current; It supports storing 60 sets of welding specifications, and is equipped with a large-size LCD screen interface with a Chinese-English switching display function, enabling flexible operation and adaptation to various welding needs.

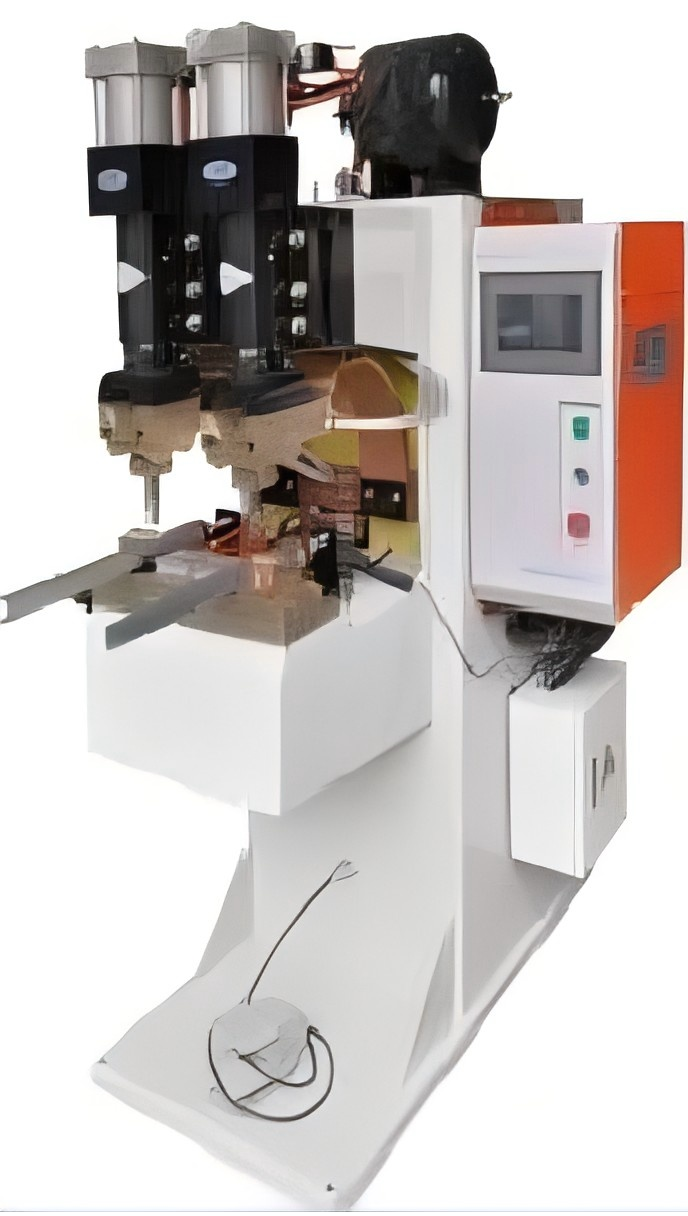

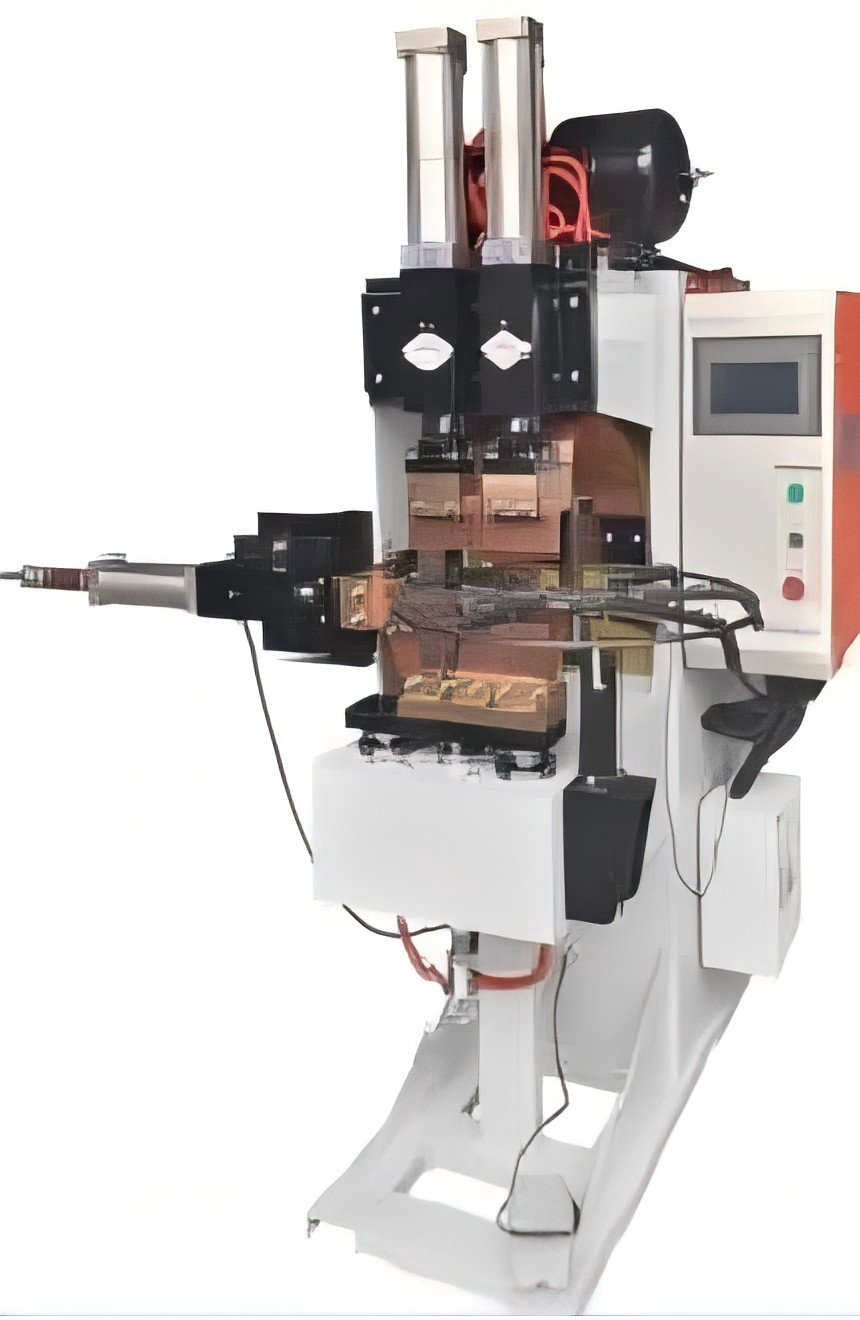

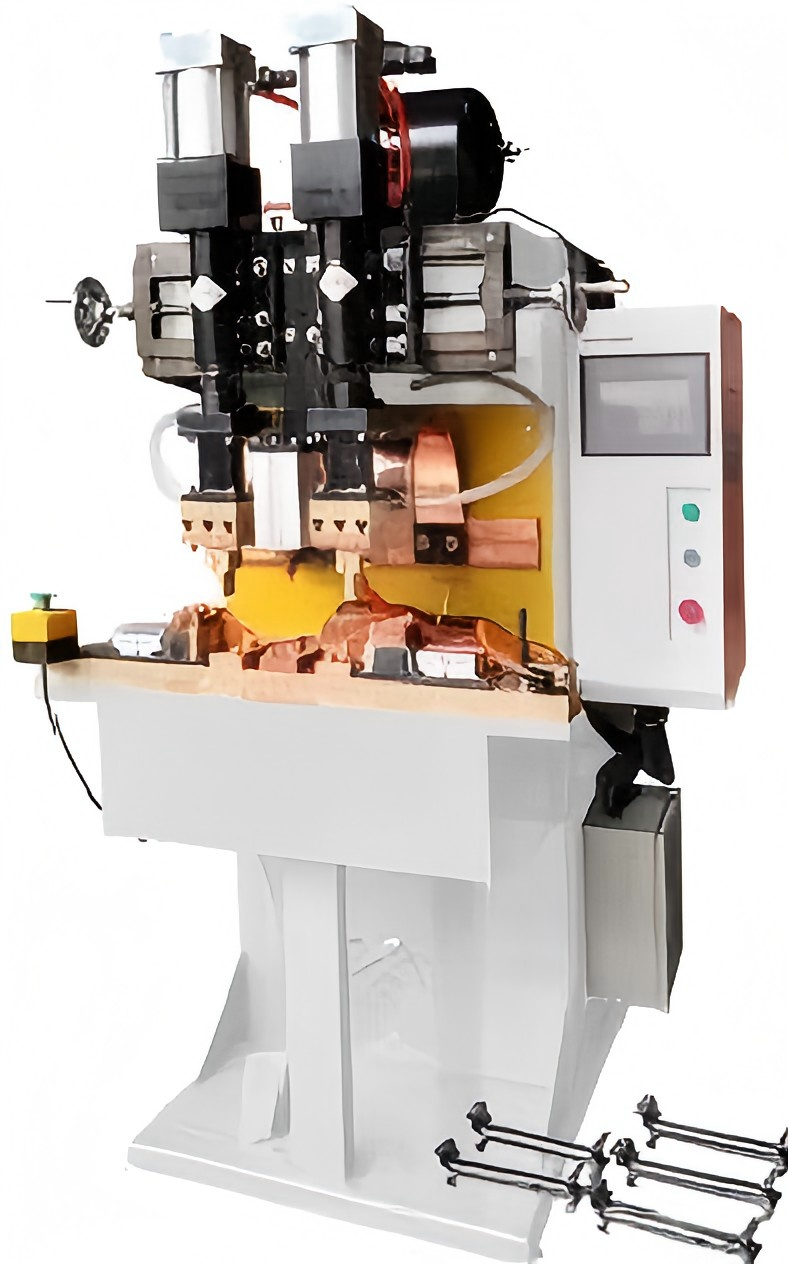

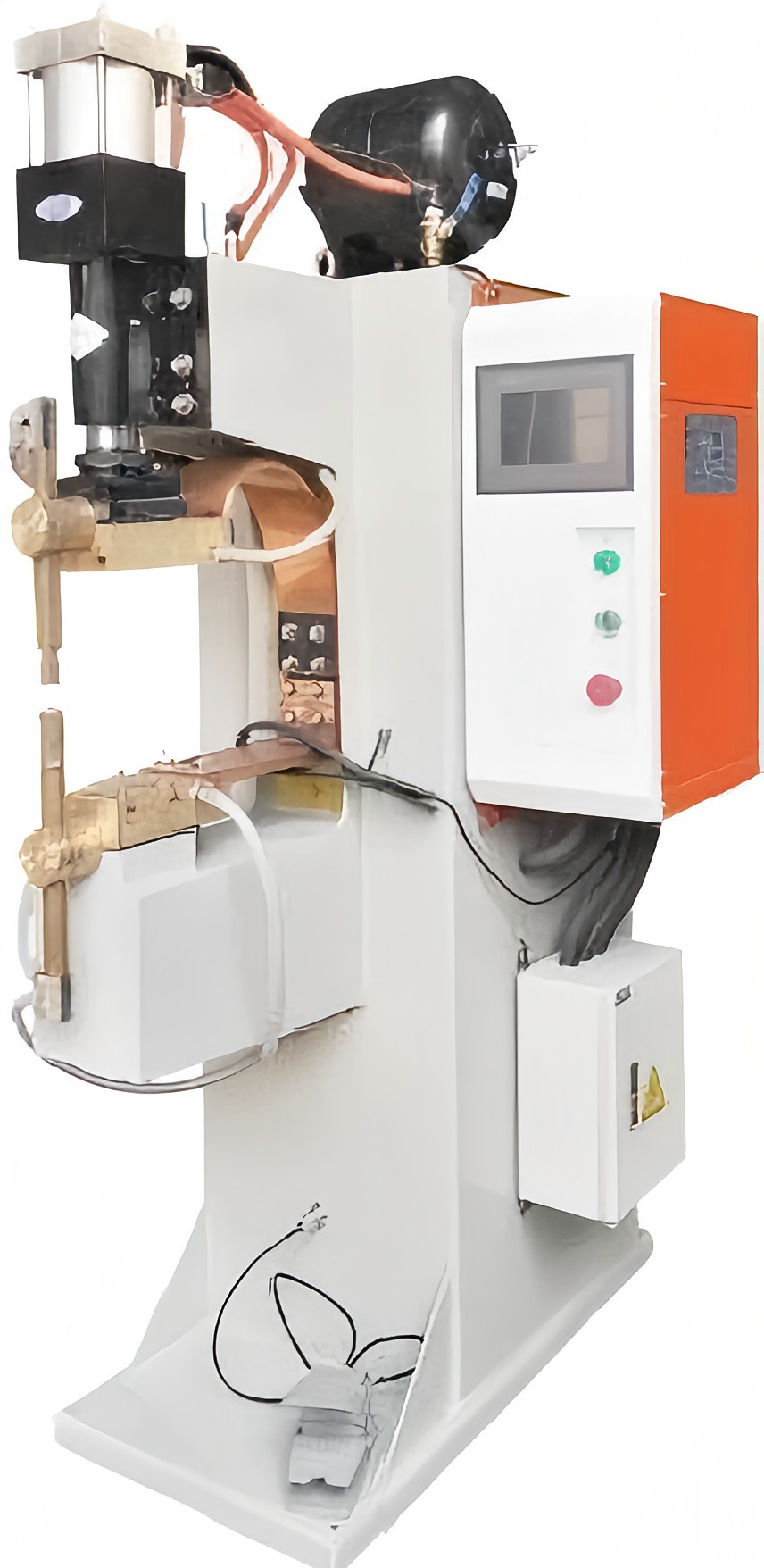

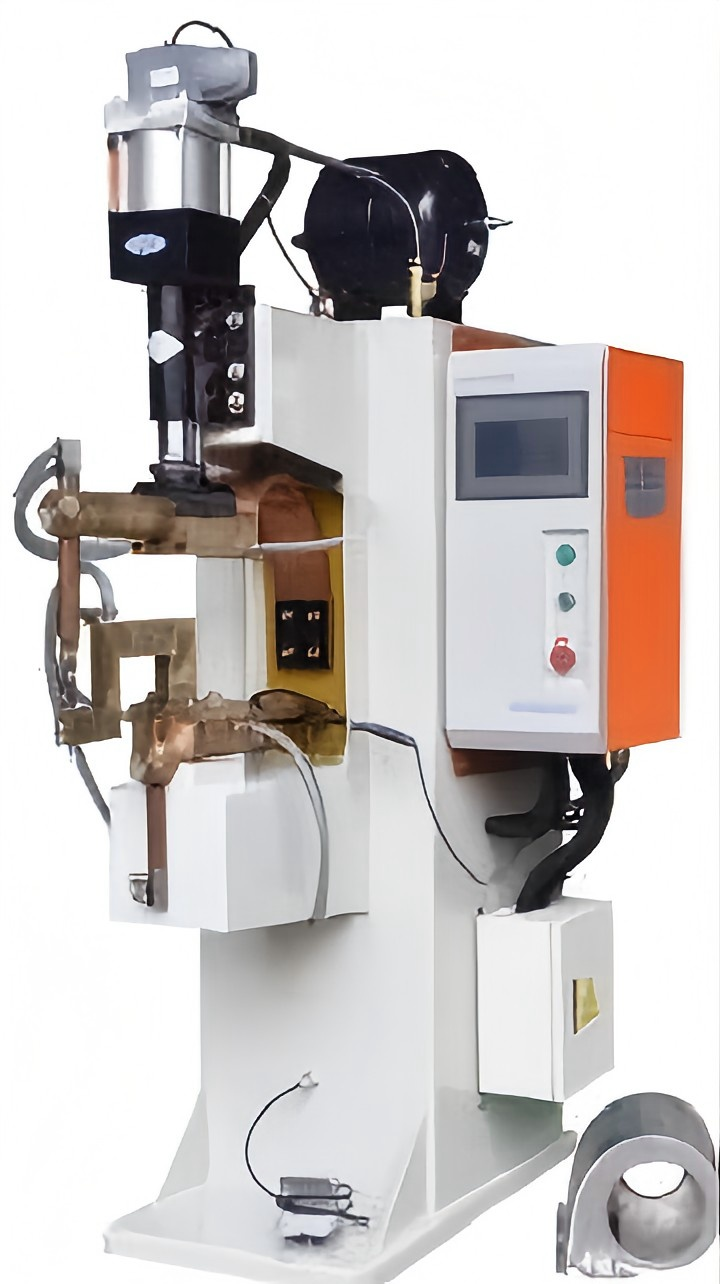

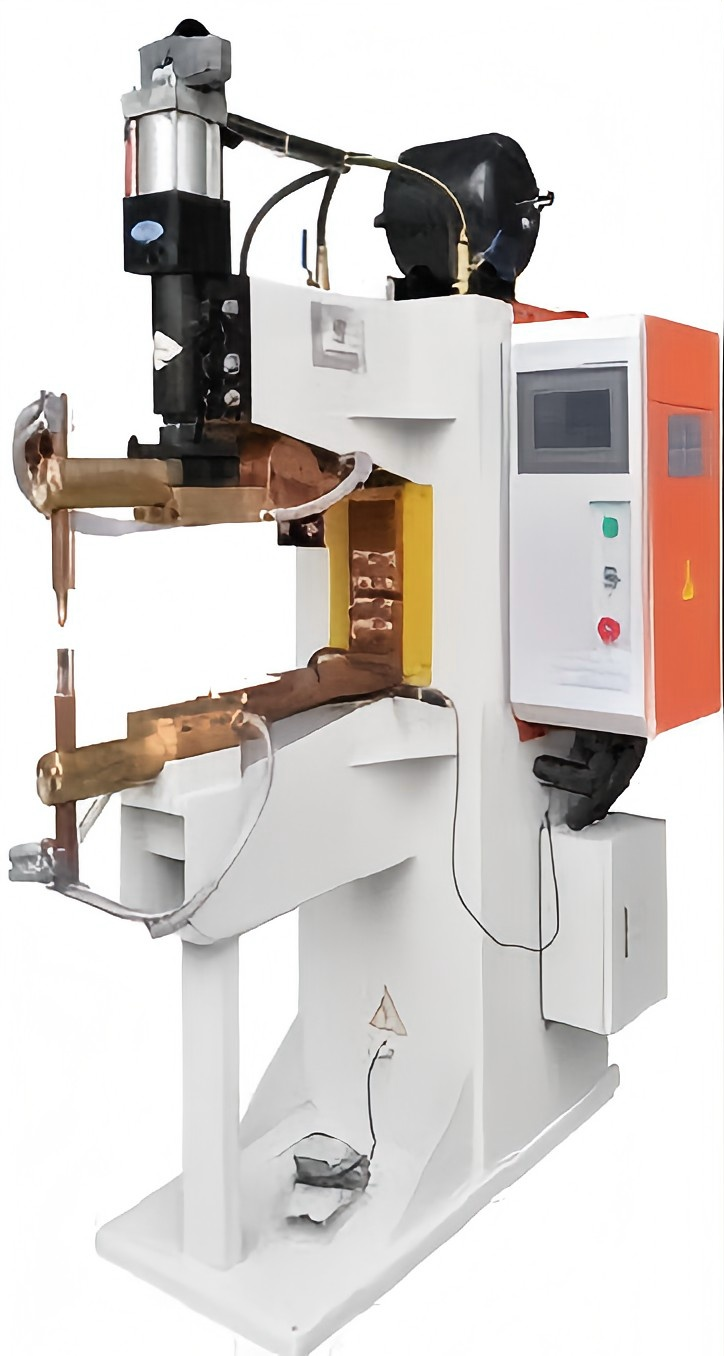

- Wide Scene Adaptation: It covers various types of machines such as single-head, double-head, and extended-arm, which can meet the welding applications of different components such as guide rails, fire rings, fan casings, and wind window nets, and has strong customization capabilities.

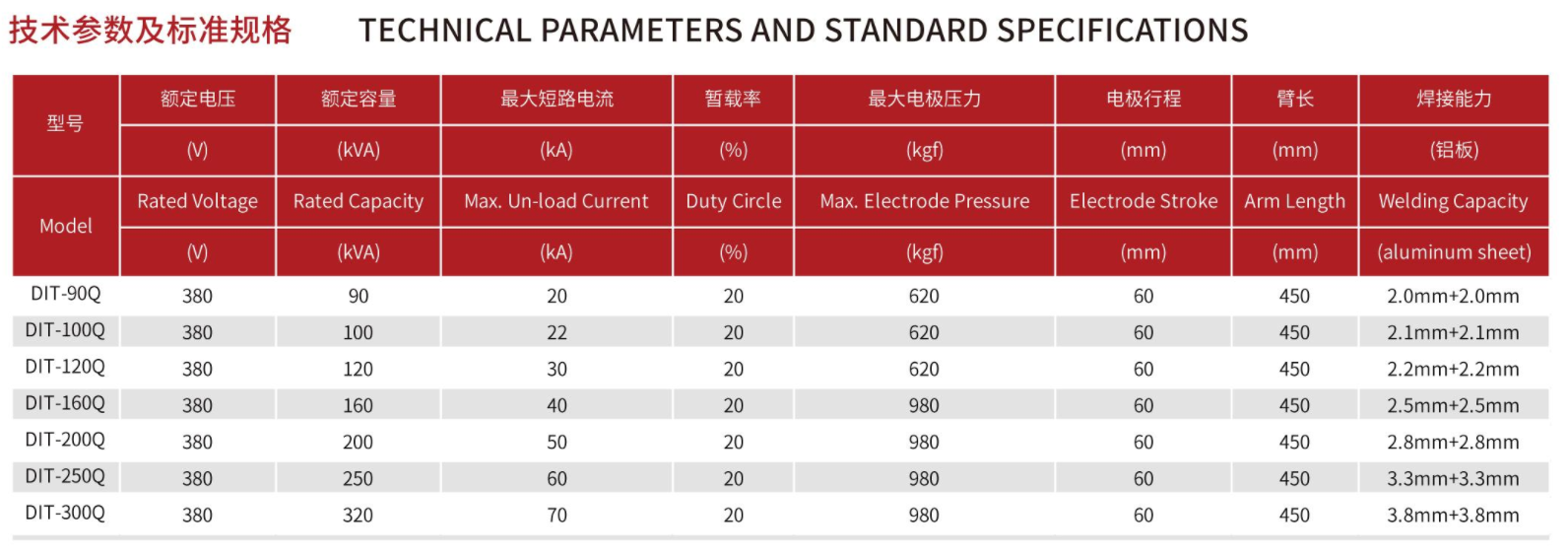

Main Technical Data:
Pallet Packing, Wooden Packing, Vaccum Packing are all avaible as per your request.
* Warranty Period - 12Months:
* Complete After Service Support:
* Factory Visit Available:
* Strongger commissioning:
we understand that onsite support for commissioning is a crucial activity and hence we provide a skillful team of experienced engineers to ensure that the start-up and commissioning of our system at your plant is smooth.
Our start-up team is capable to manage and reduce unforeseen risks of performance problems and equipment failures. Our team follows standard processes to ensure that the necessary electrical, mechanical and environmental criteria have been met before commissioning.
During special period, our team can provide powerful Remote Commissioning.
Q: What can you offer me?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.
Q:Could we appoint the parts brand?
A: Yes, ABB, SIEMENS, Danfoss, or theirs that you like.
Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical successful commissioning at the buyer's factory)
Q: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are Alibaba legitimate certification company (VIP),and we support payment L/C,T/T and so on to ensure your safety.
Q: Why do I choose your company?
A: We have more than 15 years of professional experience in the area of cable machinery, providing high-quality, high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
