Application: for various power wire, CAT 5 and ultra CAT 5 and CAT 6 data cable,communication cable and other special cable for high speed cabling twist,meanwhile, finish central wrapping.
Single Twist Stranding Lines Description:
Payoff DIN400-630
Longitudinal taping head
Concentric taping head

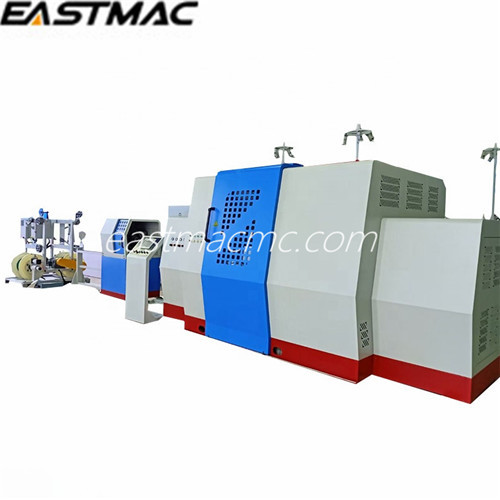

Single twist stranding machine DIN630-1250
PLC control system with color touch screen
Single Twist Stranding Lines Advanced function (Optional):
1. Motorized payoff
2. Longitudinal or concentric taping head
Performance:
1. HMI + PLC control system, twisting pitch, production, line speed set on touch screen, alarm and recipe system, easy operation.
2. Wide range for cabling cables, special for LAN cable, USB date cable, control, measuring etc. Equipped with concentric or longitudinal taping unit for shielding purpose.
3. Pitch accurate, electronic tracking pitch, driven via differential unit, pitch can be constant when speed accelerating or decelerating.
4. Self-traversing, traversing and bobbin-holding devices from one complete unit. Traversing unit moves on railway guides via motor, superior quality for twisted cable electrical performance.
Main technical data:
|
Model |
400-500 |
630 |
800 |
1000 |
1250 |
|
Pay-off bobbin(mm) |
300-400mm |
400-500-630 |
400-500-630 |
400-500-630 |
400-500-630 |
|
take-up bobbin(mm) |
500 |
630 |
800 |
1000 |
1250 |
|
Wire diameter(mm) |
0.5- 2.0 (Soft structure) |
0.6- 3.0(Soft structure) |
0.6-3.0(Soft structure) |
1.0-5.0 (Soft structure) |
1.0-5.0 (Soft structure) |
|
Max twsit diameter(mm) |
Φ6 |
Φ15 |
Φ20 |
Φ25 |
Φ30 |
|
Lay length(mm) |
13-80 |
20-200 |
30-300 |
30-350 |
30-350 |
|
Roatte speed(RPM) |
850 |
1000 |
800 |
800 |
500 |
|
Take-up tension |
Auto tension,adjust freely |
||||
|
Traverse method |
According to bobbin speed reciprocating movement to adjust |
||||
|
Traverse pitch(mm) |
2.5-10 |
2-12 |
3-20 |
3-30 |
3-30 |
