Application:

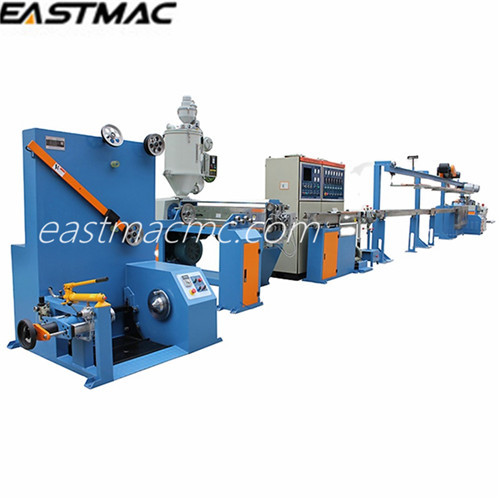

High speed Cable extrusion line has been matured for market which is suitable for PVC, PE,PU and other plastic. its capacity has achieved international advanced level. Equipping this line enables the capacity more stable, and takes less space.
Products produced by High speed Cable extrusion line:
Main technical data:
| Cable extrusion machine model | 65 | 90 | 120 |
| Conductor(mm2) | 0.35- 2.5 | 1.0-6.0 | 1.5-10.0 |
| Wire OD (mm) | 1.0-4.0 | 1.5~7.0 | 2.5~8.0 |
| Min Thickness(mm) | 0.2- 1.2 | ||
| Material | PVC HFFR XLPE HDPE PA PU | ||
| Output PVC (kg/h) | 200 | 400 | 600 |
| Line Speed (m/min) | 1200m/min | ||
| Pay Off OD (mm) | 500- 630 | 500~630 | 630~800 |
| Cooling System | Single Layer Spray Trough+Multi-pass Cooling Tank | ||
| Capstan | 318 double wheel | 318 double wheel | 318 double wheel |
| Take up Spool (mm) | 500- 630 | 630- 800 | 1000- 1250 |
