Application:

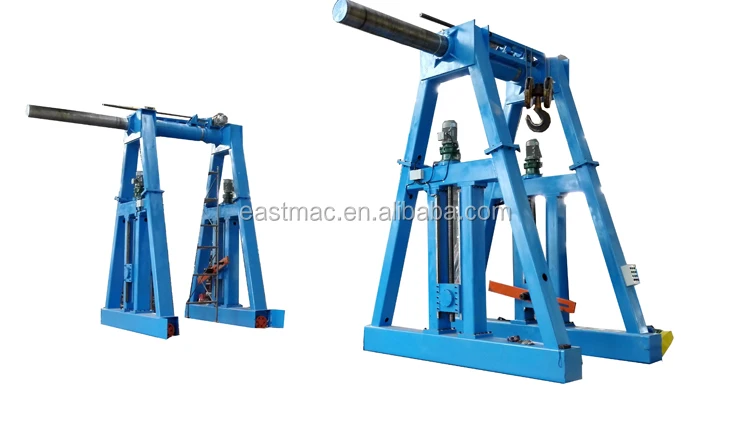

A shape Gantry rail walk type Pay-off and Take-up is normally used for the winding and unwinding of big and heavy cable.
Structural features :
1.Gantry rail walk type. Placed on or under the tubular structure
2. The frame with rectangular tube welded together, the "A" type structure, has the stable structure. The characteristics of the bearing capacity is strong, neat appearance. Beautiful
3. The elevator guide rail for high strength and linear rolling guide (linear guide rail pair)
4. Line transmission adopts hard gear box, transmission torque, low noise
5. Take-up main motor
A. Take-up main motor adopts dc speed regulating motor, controller for continental series products
B. Take-up main motor adopts dc speed regulating motor, controller for continental series products
6.Row line motor adopts frequency conversion motor, controller of Siemens or Danfoss products, wiring, automatic tracking and linear velocity, strings of pitch and take-up tension can be set on the touch screen (Siemens) of operation PLC programmable controller with various host from spreading.
Main technical data:
| Model specification | ALSP.ALF1250/2500 | ALSP.ALF2000/3150 | ALSP.ALF2500/4500 | ALSP.ALF3150/5000 |
| Coil specification shall apply | PN1250-PN2500 | PN2000-PN3150 | PN2500-PN4500 | PN3150-PN5000 |
| Applicable to cable diameter(mm) | ≤120 | ≤160 | ≤160 | ≤180 |
| Coil diameter(mm) | Φ1250~Φ2500 | Φ2000~Φ4200 | Φ2500~Φ4500 | Φ3150~Φ5000 |
| Apply coil width(mm) | 1180~1900 | 1500~2300 | 1900~2500 | 2300~3000 |
| Closed linear velocity (mm/min) | ≤80 | ≤50 | ≤35 | ≤30 |
| Ribbon cable precision (%) | 1~2% | 1~2% | 1~2% | 1~2% |
| Bearing capacity(t) | 15 | 18 | 35 | 40 |
