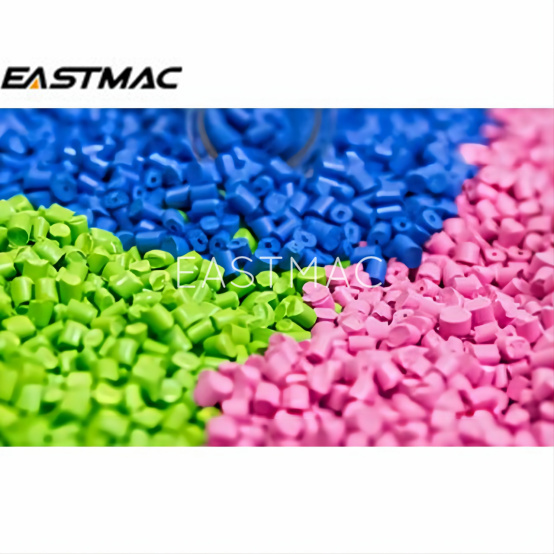

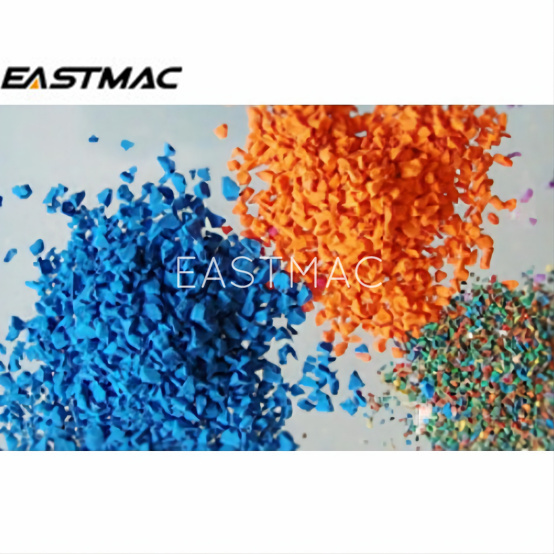

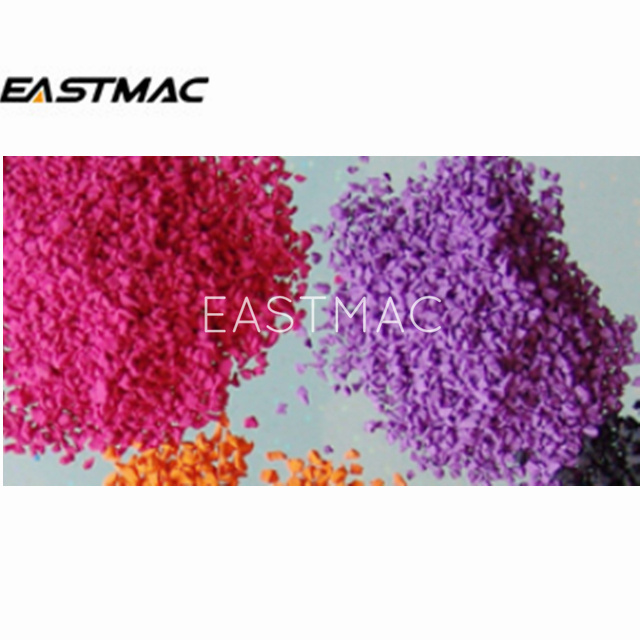

TEWR125 Thermoplastic Low-smoke Halogen-free Flame-retardant Elastomeric Compound PE Sheathing Material

Item No.: 00641
TEWR125 is a kind of thermoplastic low-smoke halogen-free flame-retardant elastomeric compounds. The highest working temperature is 125℃. It has good mechanical property, electrical property, flame retardant property as well as processability.
  • ModelTEWR125
  • Brand NameEASTMAC
  • Place of OriginChina
  • PortShanghai
  • Supply Ability1000 Tons Per Month
  • Payment TermsL/C,T/T
  • More Less
    Description
    Description

    Application:

    TEWR125 is a kind of thermoplastic low-smoke halogen-free flame-retardant elastomeric compounds. The highest working temperature is 125℃.

    It has good mechanical property, electrical property, flame retardant property as well as processability. Its high-temperature resistant aging property

    is very well and suitable for strict aging requirements of insulation and jacketing. It also can be used for other cables which have long service life

    requirements. It is simple processing without cross-linking and can be recycled.

    Processing Indicator

    Recommend to use special screw for low-smoke halogen-free compound with L/D=20-25.

    Main technical data:

    Model



    Machine Barrel Temperature

    Molding Temprature



    TEWR125

    130-150℃



    145-160℃



    Item



    Unit



    Specification



    Density



    g/cm3

    ≤1.45

    Tensile Strength



    MPa

    ≥10

    Elongation at Break



    %

    ≥180

    Aging Conditions



    /

    158×168h

    Reserved Tensile Strength



    %

    ≥70

    Reserved Elongation at Break



    %

    ≥70

    Dielectric Strength



    MV/m

    ≥20

    Brittle Temperature With Low Temperature Impact

    -40

    20 Volume Resistivity



    Ω. m

    ≥1.0×1012

    Oxygen Index



    %

    ≥28

    HCL Gas Evolution



    Mg/g

    ≤5.0

    PH Value



    /

    ≥4.3

    Smoke Density

     No-flame Mode

     Flame Mode



    Ds max



    ≤200

    ≤100

    Conductivity



    u S/mm

    ≤10

    Toxicity Index



    /

    ≤5.0
