Application:

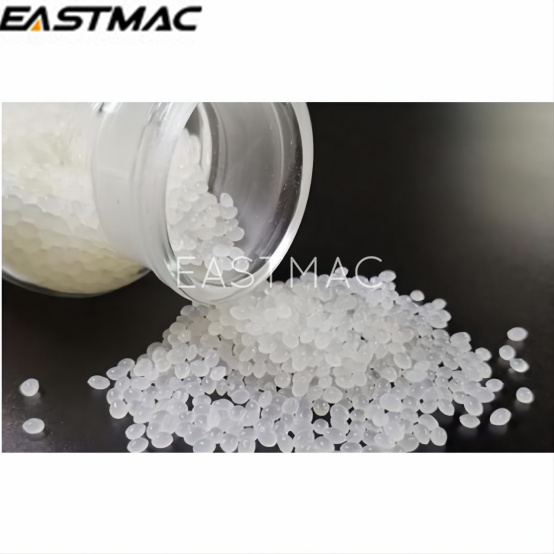

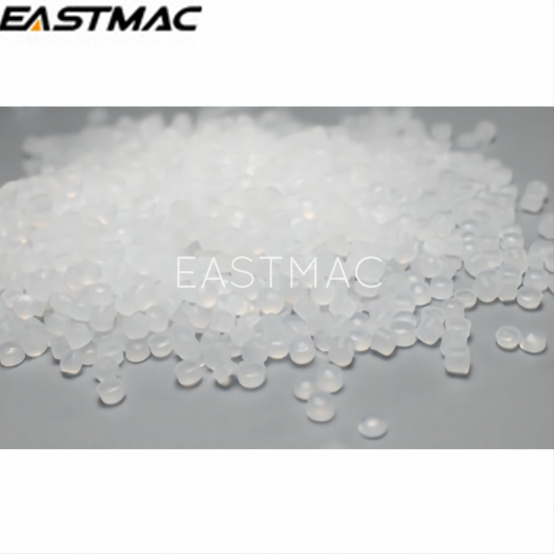

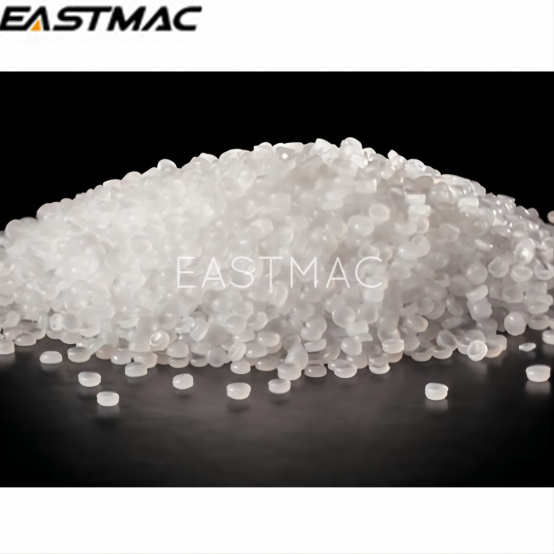

SEJ90-2-KK(N) is two-step silane cross-linkable polyethylene insulation compound for low-voltage cables. It is mainly used for the insulation of

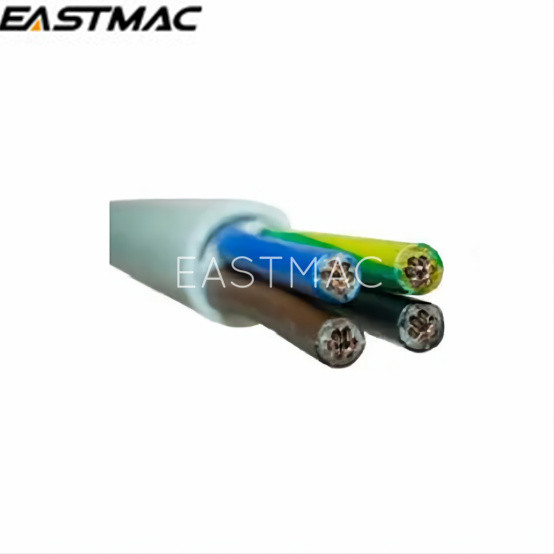

low-voltage overhead cables through squeeze tube mold production process. Cables working voltage is 3KV and below, the highest working
temperature is 90℃. The color of this product is black if there are no speical explanations.
Processing Indicator
Recommend to process with the PE extruder.
Main technical data:
|
Model
|
Machine Barrel Temperature |
Molding Temprature
|
|
SEJ90-2-N SEJ90-2-M |
155- 175℃ |
180- 190℃ |
|
Item
|
Unit
|
Technical requirements |
|
|
Density
|
g/cm3 |
0.922±0.005 |
|
|
Tensile Strength
|
MPa |
≥13.5 |
|
|
Elongation at Break
|
% |
≥350 |
|
|
Brittle Temperature with Low Temperature
|
℃ |
-76 ≤15/30 |
|
|
20℃ Volume Resistivity
|
Ω·m |
≥1.0×1014 |
|
|
20℃ Dielectric Strength,50Hz
|
MV/m |
≥25.0 |
|
|
20℃ Dielectric Constant,50Hz
|
---- |
≤2.35 |
|
