Application:

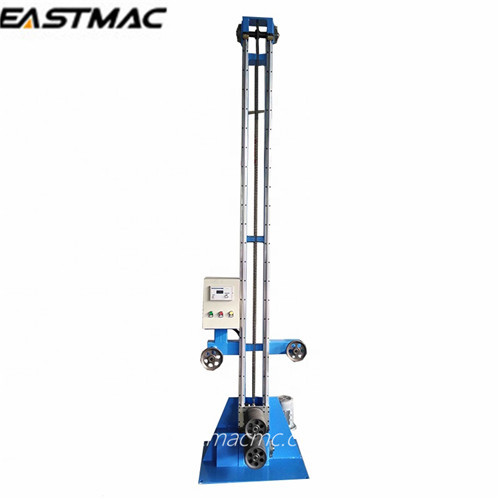

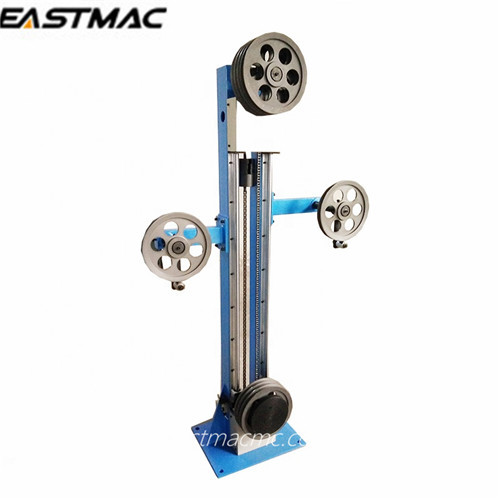

Wire Accumulator is normally installed in an Extrusion, CV’s and rewinding line.
Feature:
Type: Vertical or Horizontal
To be installed in an Extrusion, CV’s and rewinding line
To accumulate or control pay-off and take-up during reel change over
Accumulation capacity could be made according to customer’s requirement
Main Technical Data:
|
Model |
Wheel Diameter(mm) |
Nos. of wheels |
Capacity (m) |
Cable Diameter (mm) |
|
AC-0330V |
300 |
10+11 |
41 |
2~6 |
|
AC-0335V |
350 |
9+10 |
38 |
4~11 |
|
AC-0340V |
400 |
7+8 |
30 |
6~12 |
|
AC-0345V |
450 |
7+8 |
31 |
8~13 |
|
AC-0350V |
500 |
6+7 |
24 |
10~15 |
|
AC-0360V |
600 |
6+7 |
24 |
12~20 |
