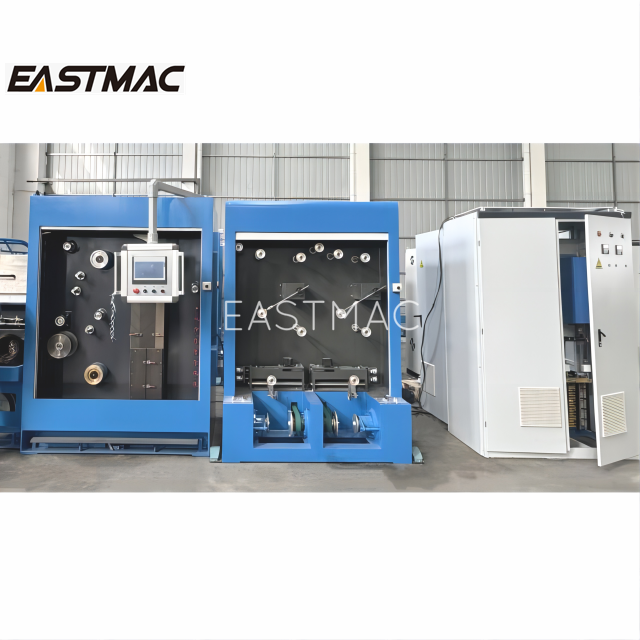

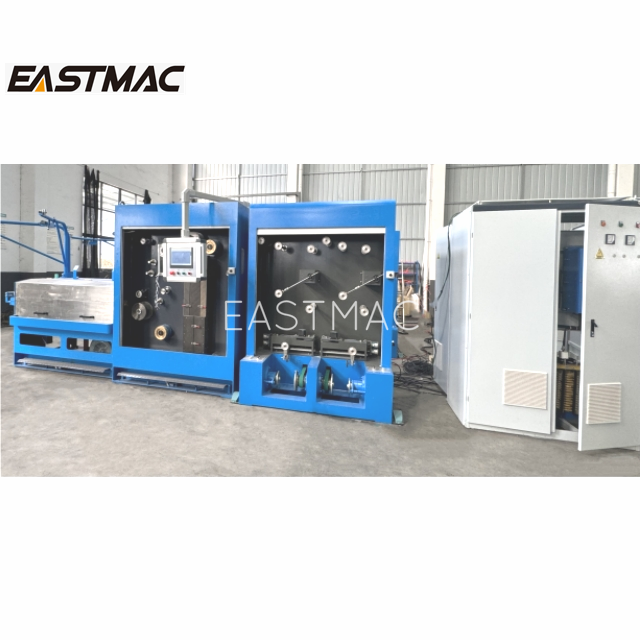

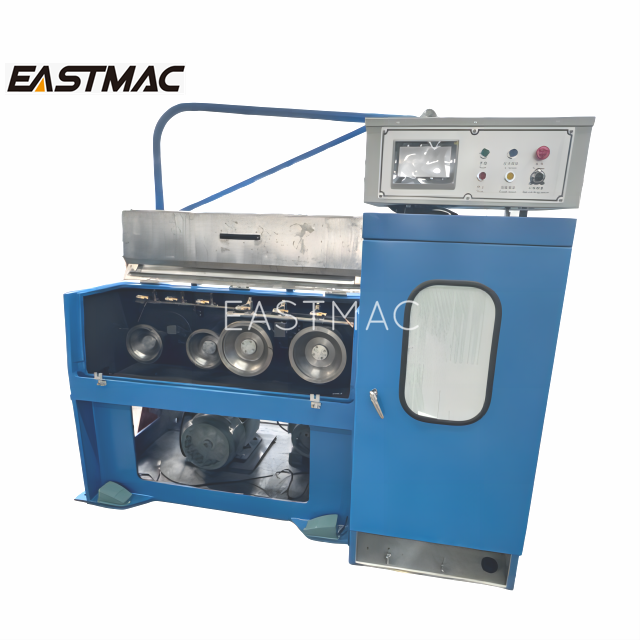

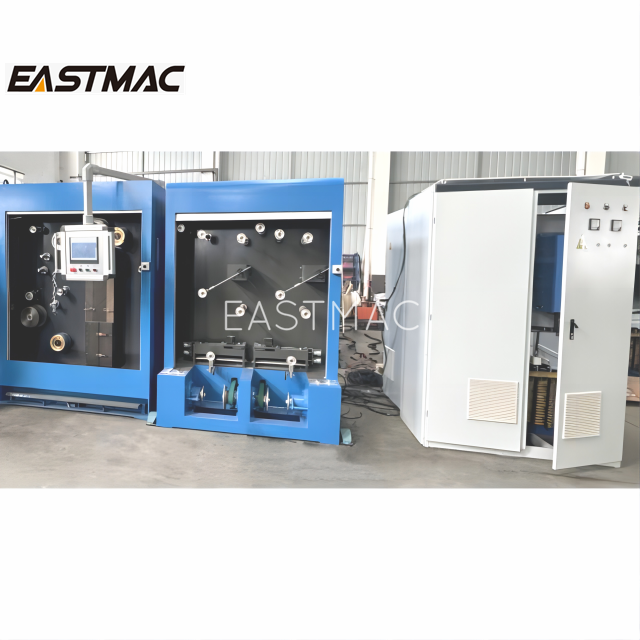

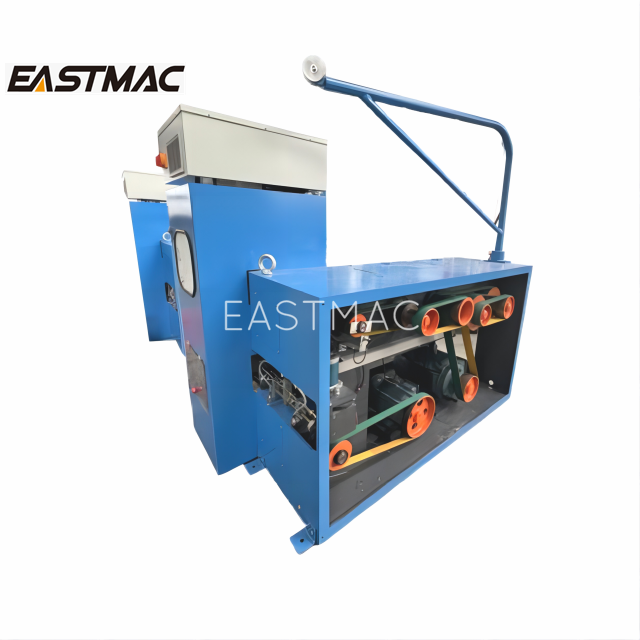

China manufacture twin wire Drawing Machine with Continuous Annealer for copper and aluminum wires
Double Fine Wire Drawing Machine Feature:
Suitable for double wire drawing at the same time
With advantages of high efficiency, saving energy, space and labor force
With advantages of high efficiency, saving energy, space and labor force
Dual inverters and motors control for take-up, drawing stable
Tension independent control, wire is not easily gets break
Full immersion design for lubrication and coling, so that wire can get best finishing surface and prolong the working life
of capstan and dies. Two options available for take-up
Output wire can be spooled on the same bobbin or two bobbins separately
Main Technical Data:
|
Machine Type |
21/2DBX |
|
Inlet dia.(mm) |
2 ×Φ0.5-Φ1.0 |
|
Outlet dia(mm) |
2 ×Φ0.10-Φ0.30 |
|
Max .speed(mpm) |
600 |
|
Max. number of dies |
21 |
|
Slip ratio of M/C |
13 % |
|
Fix speed capstan slip ratio |
8% |
|
Capstan |
Bearings steel |
|
Max. capstan dia.(mm) |
Φ250 |
|
Fix speed capstan dia.(mm) |
Φ217 |
|
Frame |
Cast |
|
Main machine power |
18.5KW |
|
Take-up power |
3.7KW×2 |
|
Correction system |
Automatically control |
|
Dynamic control |
Double frequency converters control |
|
Transmission method |
Timing belt |
|
Pay-off method |
Over-head |
|
Traversing method |
Flat belt +Synchronous motor |
|
Tension control |
Weight balance by swing arm |
|
Lubrication system of drawing |
Immersing type |
|
Suitable spool(mm) |
Φ300 or as per use’s requirement |
|
Take-up capacity |
50×2 |
|
Brake |
Pneumatic brake |
|
Machine dimension(mm) |
3500L×1300W×1900H |
|
Machine weight(kg) |
3000 |
